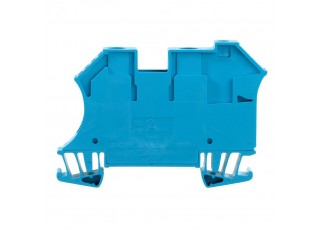

1042480000 WDU 10/ZR BL (50 pcs.)
- Brand:Weidmüller
- Product Code: 1042480000
- Availability: Out Of Stock
Feed-through terminal, Screw connection, 10 mm², 800 V, 57 A, blue
| Version | Feed-through terminal, Screw connection, 10 mm², 800 V, 57 A, blue |
| Order No. | 1042480000 |
| Type | WDU 10/ZR BL |
| GTIN (EAN) | 4032248285662 |
| Qty. | 50 items |
| 49 mm | |
| Depth (inches) | 1.929 inch |
| Depth including DIN rail | 49.5 mm |
| Height | 70 mm |
| Height (inches) | 2.756 inch |
| Width | 9.9 mm |
| Width (inches) | 0.39 inch |
| Net weight | 22.394 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 120 °C |
| Material | Wemid |
| Colour | blue |
| UL 94 flammability rating | V-0 |
| Version | Screw connection Additional connection for screwable cross-connection in closed state |
| End cover plate required | No |
| Number of potentials | 1 |
| Number of levels | 1 |
| Number of clamping points per level | 3 |
| Number of potentials per tier | 1 |
| Levels cross-connected internally | No |
| PE connection | No |
| Rail | TS 35 |
| N-function | Yes |
| PE function | No |
| PEN function | No |
| Cross-section for connected wire, solid, two clampable wires, max. | 6 mm² |
| Cross-section for connected wire, solid, two clampable wires, min. | 0.5 mm² |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max. | 6 mm² |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min. | 1 mm² |
| Wire connection cross section, finely stranded, two clampable wires, min. | 1 mm² |
| Wire cross-section, finely stranded, two clampable wires, max. | 6 mm² |
| Explosion-tested version | No |
| Number of similar terminals | 1 |
| Open sides | closed |
| Type of mounting | Snap-on |
| Blade size, additional connection | 0.6 x 3.5 mm |
| Clamping range, further connection, max. | 6 mm² |
| Clamping range, further connection, min. | 0.21 mm² |
| Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max. | 4 mm² |
| Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, min. | 0.5 mm² |
| Conductor cross-section, flexible, further connection, min. | 0.5 mm² |
| Connection direction | on side |
| Connection type, additional connection | Screw connection |
| Cross-section for connected wire, AWG, additional connection, max. | AWG 10 |
| Cross-section for connected wire, AWG, additional connection, min. | AWG 26 |
| Cross-section for connected wire, flexible, further connection, max. | 4 mm² |
| Cross-section for connected wire, multi-core, further connection, max. | 4 mm² |
| Cross-section for connected wire, multi-core, further connection, min. | 1.5 mm² |
| Cross-section for connected wire, solid-core, further connection, max. | 6 mm² |
| Cross-section for connected wire, solid-core, further connection, min. | 0.5 mm² |
| Number of connections, additional connection | 1 |
| Rated cross-section, further connection | 4 mm² |
| Stripping length , additional connection | 10 mm |
| Terminal screw, additional connection | M 3 |
| Tightening torque, additional connection, max. | 1 Nm |
| Tightening torque, additional connection, min. | 0.5 Nm |
| Blade size | 0.6 x 3.5 mm |
| Clampable conductor |
|
| Clamping range, max. | 16 mm² |
| Clamping range, min. | 1.31 mm² |
| Clamping screw | M 4 |
| Connection cross-section, stranded, max. | 16 mm² |
| Connection cross-section, stranded, min. | 1.5 mm² |
| Connection direction | on side |
| Gauge to IEC 60947-1 | B6 A4 |
| Number of connections | 2 |
| Stripping length | 12 mm |
| Tightening torque, max. | 1.9 Nm |
| Tightening torque, min. | 1.2 Nm |
| Torque level with DMS electric screwdriver | 4 |
| Twin wire-end ferrules, max. | 6 mm² |
| Twin wire-end ferrules, min. | 1.5 mm² |
| Type of connection | Screw connection |
| Wire connection cross section AWG, max. | AWG 6 |
| Wire connection cross section AWG, min. | AWG 16 |
| Wire connection cross section, finely stranded, max. | 16 mm² |
| Wire connection cross section, finely stranded, min. | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 16 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 16 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 1.5 mm² |
| Wire connection cross-section, solid core, max. | 16 mm² |
| Wire connection cross-section, solid core, min. | 1.5 mm² |
| Certificate No. (CSA) | 200039-1057876 |
| Current size C (CSA) | 65 A |
| Voltage size C (CSA) | 600 V |
| Wire cross section max. (CSA) | 6 AWG |
| Wire cross section min. (CSA) | 16 AWG |
| TS 35 offset | 32 mm |
| Rail | TS 35 |
| Standards | IEC 60947-7-1 |
| Wire connection cross section AWG, max. | AWG 6 |
| Wire connection cross section AWG, min. | AWG 16 |
| Rated cross-section | 10 mm² |
| Rated voltage | 800 V |
| Rated DC voltage | 800 V |
| Rated current
|
