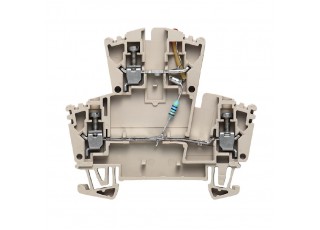

1023600000 WDK 2.5 LD RT 24VDC +- (25 pcs.)

Get information

W-Series, Feed-through terminal, Double-tier terminal, Rated cross-section: 2.5 mm², Screw connection

Version	W-Series, Feed-through terminal, Double-tier terminal, Rated cross-section: 2.5 mm², Screw connection
Order No.	1023600000
Type	WDK 2.5 LD RT 24VDC +-
GTIN (EAN)	4008190060855
Qty.	25 items

Storage temperature	-25 °C...55 °C
Continuous operating temp., min.	-50 °C
Continuous operating temp., max.	120 °C

Version	Screw connection with LED
End cover plate required	Yes
Number of potentials	1
Number of levels	2
Number of clamping points per level	2
Number of potentials per tier	1
Levels cross-connected internally	Yes
PE connection	No
Rail	TS 35
N-function	No
PE function	No
PEN function	No

Component LED	Colour: red Voltage, min.: 6 V Voltage, max.: 24 V Current: 20 mA
Component resistor	Resistance: 4.7 kOhm Power loss: 0.4 W Tolerance (%): 1 %

Blade size	0.6 x 3.5 mm
Clampable conductor	Connection specification: Screw connection Cross-section for conductor connection: Type: solid, H05(07) V-U min.: 0.5 mm² max.: 4 mm² nominal: 2.5 mm² wire end ferrule: Stripping length: min.: 10 mm max.: 10 mm nominal: 10 mm Connection specification: Screw connection Cross-section for conductor connection: Type: flexible, H05(07) V-K min.: 0.5 mm² max.: 4 mm² nominal: 2.5 mm² wire end ferrule: Stripping length: min.: 10 mm max.: 10 mm nominal: 10 mm
Clamping range, max.	4 mm²
Clamping range, min.	0.13 mm²
Clamping screw	M 2.5
Connection cross-section, stranded, max.	4 mm²
Connection cross-section, stranded, min.	1.5 mm²
Connection direction	on side
Gauge to IEC 60947-1	A3
Number of connections	3
Stripping length	10 mm
Tightening torque, max.	0.6 Nm
Tightening torque, min.	0.4 Nm
Type of connection	Screw connection
Wire connection cross section, finely stranded, max.	4 mm²
Wire connection cross section, finely stranded, min.	0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.	0.5 mm²
Wire connection cross-section, solid core, max.	4 mm²
Wire connection cross-section, solid core, min.	0.5 mm²

TS 35 offset

35.5 mm

Current	5 mA
Indicator element	red
Operating voltage for display, max.	24 V
Operating voltage for display, min.	24 V
Type of voltage for indicator	DC

Rail	TS 35
Standards	IEC 60947-7-1

Rated cross-section	2.5 mm²
Rated voltage	24 V
Rated DC voltage	24 V
Current at maximum wires	10 A
Standards	IEC 60947-7-1
Volume resistance according to IEC 60947-7-x	1.33 mΩ
Rated impulse withstand voltage	0.8 kV
Power loss in accordance with IEC 60947-7-x	0.77 W
Pollution severity	3

Product information

The allowed continuous operating temperature must be observed

Approval/Certificate/Document of Conformity	[CE Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_37165) [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284527) [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_59638)
Engineering Data	[Zuken E3.S](LINK/CAE_EN.html)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1023600000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1023600000)
WSCAD Universe	[WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1023600000&norm=0)
User Documentation	[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Approvals	![CE](/picture/CE.gif) ![UKCA](/picture/UKCA.gif)
ROHS	Conform
