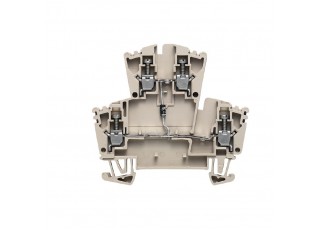

1023400000 WDK 2.5 1D A.1 (25 pcs.)
- Brand:Weidmüller
- Product Code: 1023400000
- Availability: Out Of Stock
W-Series, Component terminal, Rated cross-section: 2.5 mm², Screw connection
| Version | W-Series, Component terminal, Rated cross-section: 2.5 mm², Screw connection |
| Order No. | 1023400000 |
| Type | WDK 2.5 1D A.1 |
| GTIN (EAN) | 4008190103538 |
| Qty. | 25 items |
| 62.5 mm | |
| Depth (inches) | 2.461 inch |
| Depth including DIN rail | 63 mm |
| Height | 69 mm |
| Height (inches) | 2.717 inch |
| Width | 5.1 mm |
| Width (inches) | 0.201 inch |
| Net weight | 12.11 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 120 °C |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | a3090896-0f16-410d-aabb-617cfb571002 |
| Material | Wemid |
| Colour | dark beige |
| UL 94 flammability rating | V-0 |
| Version | Screw connection with diode for screwable cross-connection One end without connector |
| End cover plate required | Yes |
| Number of potentials | 1 |
| Number of levels | 2 |
| Number of clamping points per level | 2 |
| Number of potentials per tier | 1 |
| Levels cross-connected internally | Yes |
| PE connection | No |
| Rail | TS 35 |
| N-function | No |
| PE function | No |
| PEN function | No |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max. | 1.5 mm² |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min. | 0.5 mm² |
| Wire connection cross section, finely stranded, two clampable wires, min. | 0.5 mm² |
| Wire cross-section, finely stranded, two clampable wires, max. | 1.5 mm² |
| Explosion-tested version | No |
| Number of similar terminals | 1 |
| Open sides | right |
| Type of mounting | Snap-on |
| Component diode |
|
| Blade size | 0.6 x 3.5 mm |
| Clamping range, max. | 4 mm² |
| Clamping range, min. | 0.05 mm² |
| Clamping screw | M 2.5 |
| Connection cross-section, stranded, max. | 4 mm² |
| Connection cross-section, stranded, min. | 1.5 mm² |
| Connection direction | on side |
| Gauge to IEC 60947-1 | A3 |
| Number of connections | 4 |
| Stripping length | 10 mm |
| Tightening torque, max. | 0.6 Nm |
| Tightening torque, min. | 0.4 Nm |
| Type of connection | Screw connection |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section AWG, min. | AWG 26 |
| Wire connection cross section, finely stranded, max. | 4 mm² |
| Wire connection cross section, finely stranded, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.5 mm² |
| Wire connection cross-section, solid core, max. | 4 mm² |
| Wire connection cross-section, solid core, min. | 0.5 mm² |
| Certificate No. (CSA) | 200039-1494105 |
| Current size C (CSA) | 1 A |
| Voltage size C (CSA) | 300 V |
| Wire cross section max. (CSA) | 12 AWG |
| Wire cross section min. (CSA) | 26 AWG |
| TS 35 offset | 35.5 mm |
| Rail | TS 35 |
| Standards | IEC 60947-7-1 |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section AWG, min. | AWG 26 |
| Rated cross-section | 2.5 mm² |
| Rated voltage | 400 V |
| Rated DC voltage | 400 V |
| Rated current | 0.5 A |
| Current at maximum wires | 0.5 A |
| Standards | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x | 1.33 mΩ |
| Rated impulse withstand voltage | 6 kV |
| Power loss in accordance with IEC 60947-7-x | 0.77 W |
| Pollution severity | 3 |
| Certificate No. (UR) | E60693 |
| Conductor size Factory wiring max. (UR) | 12 AWG |
| Conductor size Factory wiring min. (UR) | 22 AWG |
| Conductor size Field wiring max. (UR) | 12 AWG |
| Conductor size Field wiring min. (UR) | 22 AWG |
| Current size B (UR) | 20 A |
| Current size C (UR) | 20 A |
| Voltage size B (UR) | 300 V |
| Voltage size C (UR) | 300 V |
| Product information | Rated current 10 A only for the continuous currentbar. Components may reduce the rated current and the rated voltage. The permissible continuous operating temperature must be observed. The allowed continuous operating temperature must be observed |
