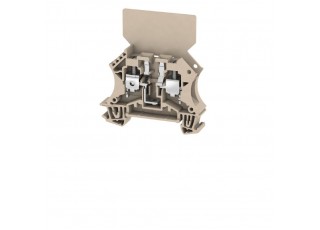

W-Series, Fuse terminal, Rated cross-section: 6 mm², Screw connection

General ordering data

Version	W-Series, Fuse terminal, Rated cross-section: 6 mm², Screw connection
Order No.	1018400000
Type	WSI 6/2 O.TNHE
GTIN (EAN)	4008190202590
Qty.	25 items

Dimensions and weights

	66.5 mm
Depth (inches)	2.618 inch
Depth including DIN rail	67 mm
Height	60 mm
Height (inches)	2.362 inch
Width	11.9 mm
Width (inches)	0.469 inch
Net weight	20.12 g

Storage temperature	-25 °C...55 °C
Continuous operating temp., min.	-50 °C
Continuous operating temp., max.	120 °C

Material	Wemid
Colour	dark beige
UL 94 flammability rating	V-0

System specifications

Version	Screw connection for screwable cross-connection One end without connector
Number of potentials	1
Number of levels	1
Number of clamping points per level	2
Number of potentials per tier	1
Levels cross-connected internally	No
PE connection	No
Rail	TS 35
N-function	No
PE function	No
PEN function	No

Additional technical data

Type of mounting

Snap-on

Conductors for clamping (rated connection)

Blade size	0.8 x 4.0 mm
Clampable conductor	Connection specification: Screw connection Cross-section for conductor connection: Type: solid, H05(07) V-U min.: 0.5 mm² max.: 10 mm² nominal: 6 mm² wire end ferrule: Stripping length: min.: 12 mm max.: 12 mm nominal: 12 mm Tightening torque: min.: 0.8 Nm max.: 1.6 Nm Connection specification: Screw connection Cross-section for conductor connection: Type: stranded, H07V-R min.: 1.5 mm² max.: 10 mm² nominal: 6 mm² wire end ferrule: Stripping length: min.: 12 mm max.: 12 mm nominal: 12 mm Tightening torque: min.: 0.8 Nm max.: 1.6 Nm Connection specification: Screw connection Cross-section for conductor connection: Type: flexible, H05(07) V-K min.: 0.5 mm² max.: 10 mm² nominal: 6 mm² wire end ferrule: Stripping length: min.: 12 mm max.: 12 mm nominal: 12 mm Tightening torque: min.: 0.8 Nm max.: 1.6 Nm
Number of connections	2
Type of connection	Screw connection

CSA rating data

Certificate No. (CSA)	200039-1057876
Current size B (CSA)	16 A
Current size C (CSA)	16 A
Current size D (CSA)	5 A
Voltage size B (CSA)	150 V
Voltage size C (CSA)	150 V
Voltage size D (CSA)	600 V
Wire cross section max. (CSA)	6 AWG
Wire cross section min. (CSA)	20 AWG

Rail	TS 35
Standards	IEC 60947-7-3 IEC 60947-7-1

Rated cross-section	6 mm²
Rated voltage	500 V
Rated voltage to adjoining terminal	500 V
Rated DC voltage	500 V
Standards	IEC 60947-7-3 IEC 60947-7-1
Volume resistance according to IEC 60947-7-x	0.78 mΩ
Power loss in accordance with IEC 60947-7-x	1.31 W

Certificate No. (UR)	E60693
Conductor size Factory wiring max. (UR)	8 AWG
Conductor size Factory wiring min. (UR)	22 AWG
Conductor size Field wiring max. (UR)	8 AWG
Conductor size Field wiring min. (UR)	22 AWG
Current size C (UR)	16 A
Voltage size C (UR)	600 V

Product information

The voltage depends on the selected fuse element or the selected indicator light

Approval/Certificate/Document of Conformity	[CB Testreport](https://mdcop.weidmueller.com/mediadelivery/asset/900_42036) [CB Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_42037) [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284530) [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_59562)
Engineering Data	[Zuken E3.S](LINK/CAE_EN.html)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1018400000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1018400000)
WSCAD Universe	[WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1018400000&norm=0)
User Documentation	[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000899
ETIM 7.0	EC000899
ETIM 8.0	EC000899
ETIM 9.0	EC000899
ECLASS 9.0	27-14-11-16
ECLASS 9.1	27-14-11-16
ECLASS 10.0	27-14-11-16
ECLASS 11.0	27-14-11-16
ECLASS 12.0	27-14-11-16
ECLASS 13.0	27-25-01-13

Approvals	![CE](/picture/CE.gif) ![CSA](/picture/CSA.gif) ![UR](/picture/UR.gif) ![UKCA](/picture/UKCA.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate No. (UR)	E60693
