1018190000 DMC 12/27 MC NE GE (50 pcs.)
- Brand:Weidmüller
- Product Code: 1018190000
- Availability: Out Of Stock

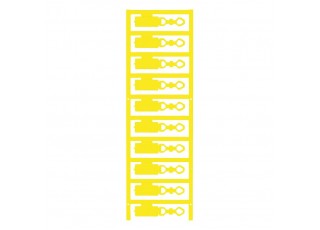

DMC, Device markers, 1.5 - 7.5 mm, 12 x 27 mm, yellow
| Version | DMC, Device markers, 1.5 - 7.5 mm, 12 x 27 mm, yellow |
| Order No. | 1018190000 |
| Type | DMC 12/27 MC NE GE |
| GTIN (EAN) | 4032248729241 |
| Qty. | 50 items |
| 5 mm | |
| Depth (inches) | 0.197 inch |
| Height | 12 mm |
| Height (inches) | 0.472 inch |
| Width | 27 mm |
| Width (inches) | 1.063 inch |
| Net weight | 2.28 g |
| Operating temperature range | -40...100 °C |
| Colour | yellow |
| Halogen | No |
| Material | Polyamide 66 |
| Material colour according to resistance code | 4 |
| Number of markers per combination | 1 MultiCard = Device markers |
| Operating temperature range | -40...100 °C |
| Operating temperature range, max. | 100 °C |
| Operating temperature range, min. | -40 °C |
| UL 94 flammability rating | V-2 |
| Width | 27 mm |
| Halogen | No |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_59557) |
| Engineering Data | [Zuken E3.S](LINK/CAE_EN.html) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1018190000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1018190000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1018190000&norm=0) |
| Product Change Notification | [MultiCard Material modification](https://mdcop.weidmueller.com/mediadelivery/asset/900_308560) [MultiCard Material Modifikation](https://mdcop.weidmueller.com/mediadelivery/asset/900_308561) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001530 |
| ETIM 7.0 | EC001530 |
| ETIM 8.0 | EC001530 |
| ETIM 9.0 | EC001530 |
| ECLASS 9.0 | 27-40-04-01 |
| ECLASS 9.1 | 27-40-04-01 |
| ECLASS 10.0 | 27-40-04-01 |
| ECLASS 11.0 | 27-28-11-02 |
| ECLASS 12.0 | 27-28-11-02 |
| ECLASS 13.0 | 27-28-11-02 |
| ROHS | Conform |
