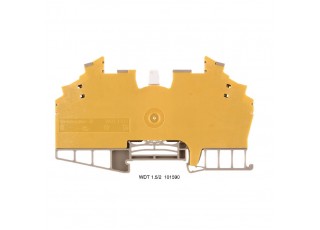

1015900000 WDT 1.5/2 DB/GE (25 pcs.)
- Brand:Weidmüller
- Product Code: 1015900000
- Availability: Out Of Stock
Test-disconnect terminal, Screw connection, 1.5 mm², 250 V, 10 A, Pivoting, dark beige
| Version | Test-disconnect terminal, Screw connection, 1.5 mm², 250 V, 10 A, Pivoting, dark beige |
| Order No. | 1015900000 |
| Type | WDT 1.5/2 DB/GE |
| GTIN (EAN) | 4008190063139 |
| Qty. | 25 items |
| 66 mm | |
| Depth (inches) | 2.598 inch |
| Depth including DIN rail | 66.75 mm |
| Height | 112 mm |
| Height (inches) | 4.409 inch |
| Width | 6.4 mm |
| Width (inches) | 0.252 inch |
| Net weight | 33.76 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 120 °C |
| Material | Wemid |
| Colour | dark beige |
| UL 94 flammability rating | V-0 |
| Version | Screw connection Spacer for plug-in cross-connector in closed state |
| End cover plate required | No |
| Number of potentials | 1 |
| Number of levels | 2 |
| Number of clamping points per level | 2 |
| Number of potentials per tier | 1 |
| Levels cross-connected internally | Yes |
| PE connection | No |
| Rail | TS 32 TS 35 |
| N-function | No |
| PE function | No |
| PEN function | No |
| Explosion-tested version | No |
| Number of similar terminals | 1 |
| Open sides | closed |
| Type of mounting | Snap-on |
| Blade size | 0.6 x 3.5 mm |
| Clamping range, max. | 2.5 mm² |
| Clamping range, min. | 0.13 mm² |
| Clamping screw | M 2.5 |
| Connection cross-section, stranded, max. | 2.5 mm² |
| Connection cross-section, stranded, min. | 1.5 mm² |
| Connection direction | top |
| Gauge to IEC 60947-1 | A2 |
| Number of connections | 2 |
| Stripping length | 10 mm |
| Tightening torque, max. | 0.6 Nm |
| Tightening torque, min. | 0.4 Nm |
| Torque level with DMS electric screwdriver | 1 |
| Type of connection | Screw connection |
| Wire connection cross section AWG, max. | AWG 14 |
| Wire connection cross section AWG, min. | AWG 26 |
| Wire connection cross section, finely stranded, max. | 1.5 mm² |
| Wire connection cross section, finely stranded, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.5 mm² |
| Wire connection cross-section, solid core, max. | 2.5 mm² |
| Wire connection cross-section, solid core, min. | 0.5 mm² |
| Certificate No. (CSA) | 12400-278 |
| Current size D (CSA) | 10 A |
| Voltage size D (CSA) | 300 V |
| Wire cross section max. (CSA) | 14 AWG |
| Wire cross section min. (CSA) | 26 AWG |
| TS 35 offset | 35.5 mm |
| Cross-disconnect | without |
| Integral test socket | Yes |
| Slitting | Pivoting |
| Rail | TS 32 TS 35 |
| Standards | IEC 60947-7-1 |
| Wire connection cross section AWG, max. | AWG 14 |
| Wire connection cross section AWG, min. | AWG 26 |
| Rated cross-section | 1.5 mm² |
| Rated voltage | 250 V |
| Rated DC voltage | 250 V |
| Rated current | 10 A |
| Current at maximum wires | 10 A |
| Standards | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x | 1.83 mΩ |
| Rated impulse withstand voltage | 4 kV |
| Power loss in accordance with IEC 60947-7-x | 0.56 W |
| Pollution severity | 3 |
| Certificate No. (UR) | E60693 |
| Conductor size Factory wiring max. (UR) | 14 AWG |
| Conductor size Factory wiring min. (UR) | 26 AWG |
| Conductor size Field wiring max. (UR) | 14 AWG |
| Conductor size Field wiring min. (UR) | 22 AWG |
| Current size C (UR) | 10 A |
| Voltage size C (UR) | 300 V |
