1015280000 SCT-C 4.6/520 (100 pcs.)
- Brand:Weidmüller
- Product Code: 1015280000
- Availability: Out Of Stock

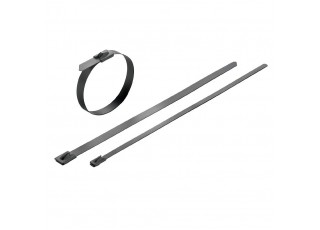

Cable ties, 4.6 x 520 mm, Stainless steel, polyester coated, 445 N
| Version | Cable ties, 4.6 x 520 mm, Stainless steel, polyester coated, 445 N |
| Order No. | 1015280000 |
| Type | SCT-C 4.6/520 |
| GTIN (EAN) | 4032248724253 |
| Qty. | 100 items |
| 0.26 mm | |
| Depth (inches) | 0.01 inch |
| Height | 520 mm |
| Height (inches) | 20.472 inch |
| Width | 4.6 mm |
| Width (inches) | 0.181 inch |
| Net weight | 5.62 g |
| Operating temperature range | -80...150 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 165 °C |
| Bundle diameter, max. | 150 mm |
| Bundle diameter, min. | 20 mm |
| Cable diameter, max. | 150 mm |
| For re-opening | No |
| Halogen | No |
| Material | Stainless steel, polyester coated |
| Operating temperature range, max. | 150 °C |
| Operating temperature range, min. | -80 °C |
| Tensile strength | 445 N |
| Tensile strength (Pound-force) | 100 lbf |
| UV-resistant | No |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1015280000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1015280000&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000046 |
| ETIM 7.0 | EC000046 |
| ETIM 8.0 | EC000046 |
| ETIM 9.0 | EC000046 |
| ECLASS 9.0 | 27-14-07-02 |
| ECLASS 9.1 | 27-14-07-02 |
| ECLASS 10.0 | 27-14-07-02 |
| ECLASS 11.0 | 27-14-07-02 |
| ECLASS 12.0 | 27-14-07-02 |
| ECLASS 13.0 | 27-14-07-02 |
| Approvals |    |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E524836 |
