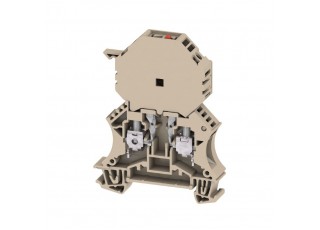

1014100000 WSI 6/2/LD 10-36V DC/AC (25 pcs.)
- Brand:Weidmüller
- Product Code: 1014100000
- Availability: Out Of Stock
W-Series, Fuse terminal, Rated cross-section: 6 mm², Screw connection
| Version | W-Series, Fuse terminal, Rated cross-section: 6 mm², Screw connection |
| Order No. | 1014100000 |
| Type | WSI 6/2/LD 10-36V DC/AC |
| GTIN (EAN) | 4008190156954 |
| Qty. | 25 items |
| 78.5 mm | |
| Depth (inches) | 3.091 inch |
| Depth including DIN rail | 79.5 mm |
| Height | 60 mm |
| Height (inches) | 2.362 inch |
| Width | 11.9 mm |
| Width (inches) | 0.469 inch |
| Net weight | 25.48 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 120 °C |
| Material | Wemid |
| Colour | dark beige |
| UL 94 flammability rating | V-0 |
| Version | Screw connection Fuse isolator with LED for screwable cross-connection One end without connector |
| End cover plate required | Yes |
| Number of potentials | 1 |
| Number of levels | 1 |
| Number of clamping points per level | 2 |
| Number of potentials per tier | 1 |
| Levels cross-connected internally | No |
| PE connection | No |
| Rail | TS 35 |
| N-function | No |
| PE function | No |
| PEN function | No |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max. | 2.5 mm² |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min. | 0.5 mm² |
| Wire connection cross section, finely stranded, two clampable wires, min. | 0.5 mm² |
| Wire cross-section, finely stranded, two clampable wires, max. | 2.5 mm² |
| Explosion-tested version | No |
| Number of similar terminals | 1 |
| Open sides | right |
| Type of mounting | Snap-on |
| Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max. | 6 mm² |
| Blade size | 0.8 x 4.0 mm |
| Clampable conductor |
|
| Clamping range, max. | 10 mm² |
| Clamping range, min. | 0.5 mm² |
| Clamping screw | M 3.5 |
| Connection cross-section, stranded, max. | 10 mm² |
| Connection cross-section, stranded, min. | 1.5 mm² |
| Connection direction | on side |
| Gauge to IEC 60947-1 | A5 |
| Number of connections | 2 |
| Stripping length | 12 mm |
| Tightening torque, max. | 1.6 Nm |
| Tightening torque, min. | 0.8 Nm |
| Torque level with DMS electric screwdriver | 3 |
| Type of connection | Screw connection |
| Wire connection cross section AWG, max. | AWG 8 |
| Wire connection cross section AWG, min. | AWG 20 |
| Wire connection cross section, finely stranded, max. | 10 mm² |
| Wire connection cross section, finely stranded, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.5 mm² |
| Wire connection cross-section, solid core, max. | 10 mm² |
| Wire connection cross-section, solid core, min. | 0.5 mm² |
| Certificate No. (CSA) | 200039-1057876 |
| Wire cross section max. (CSA) | 6 AWG |
| Wire cross section min. (CSA) | 20 AWG |
| Operating voltage for display, min. | 10 V |
| Type of voltage for indicator | AC/DC |
| Cartridge fuse | 6.3 x 32 mm (1/4 x 1 1/4") |
| Display | Red LED |
| Fuse holder (cartridge holder) | Pivoting |
| Operating voltage, max. | 36 V |
| Type of voltage for indicator | AC/DC |
| Rail | TS 35 |
| Standards | IEC 60947-7-3 |
| Wire connection cross section AWG, max. | AWG 8 |
| Wire connection cross section AWG, min. | AWG 20 |
| Rated cross-section | 6 mm² |
| Rated voltage | 36 V |
| Rated voltage to adjoining terminal | 500 V |
| Rated DC voltage | 36 V |
| Rated current | 10 A |
| Current at maximum wires | 10 A |
| Standards | IEC 60947-7-3 |
| Volume resistance according to IEC 60947-7-x | 0.78 mΩ |
| Rated impulse withstand voltage | 6 kV |
| Power loss in accordance with IEC 60947-7-x | 1.31 W |
| Pollution severity | 3 |
| Certificate No. (UR) | E60693 |
| Conductor size Factory wiring max. (UR) | 8 AWG |
| Conductor size Factory wiring min. (UR) | 22 AWG |
| Conductor size Field wiring max. (UR) | 8 AWG |
| Conductor size Field wiring min. (UR) | 22 AWG |
