0514570000 TS 35X7.5/LL/6 2M/ST/ZN (2 pcs.)
- Brand:Weidmüller
- Product Code: 0514570000
- Availability: Out Of Stock

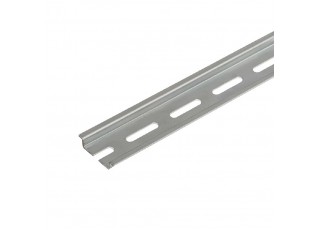

Rail, TS 35, TS 35 x 7.5, with slot, Steel, galvanic zinc plated and passivated
| Version | Rail, TS 35, TS 35 x 7.5, with slot, Steel, galvanic zinc plated and passivated |
| Order No. | 0514570000 |
| Type | TS 35X7.5/LL/6 2M/ST/ZN |
| GTIN (EAN) | 4008190980009 |
| Qty. | 2 |
| 7.5 mm | |
| Depth (inches) | 0.295 inch |
| Height | 35 mm |
| Height (inches) | 1.378 inch |
| Width | 2,000 mm |
| Width (inches) | 78.74 inch |
| Net weight | 155 g |
| Drill-hole diameter | 5.2 mm |
| Installation advice | Direct mounting |
| Length of the terminal rail |
|
| Material | Steel |
| Pre-punched mounting rail | Yes |
| Short circuit strength corresponds to E-Cu wire | 16 mm² |
| Short-time withstand current per second according to IEC 60947-7-2 | 1.92 kA |
| Slit gap | 7 mm |
| Slit gap |
|
| Slit length | 18 mm |
| Slit length |
|
| Slit width | 6.2 mm |
| Slit width |
|
| Slotted drill holes | Yes |
| Solder eyelet hole diameter (D) | 5.2 mm |
| Spacing of holes, centre-to-centre | 25 mm |
| Standards | DIN EN 60715 |
| Surface finish | galvanic zinc plated and passivated |
| Thickness | 1 mm |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_59191) |
| Engineering Data | [Zuken E3.S](LINK/CAE_EN.html) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.0514570000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=0514570000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=0514570000&norm=0) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001285 |
| ETIM 7.0 | EC001285 |
| ETIM 8.0 | EC001285 |
| ETIM 9.0 | EC001285 |
| ECLASS 9.0 | 27-40-06-02 |
| ECLASS 9.1 | 27-40-06-02 |
| ECLASS 10.0 | 27-40-06-02 |
| ECLASS 11.0 | 27-40-06-02 |
| ECLASS 12.0 | 27-40-06-02 |
| ECLASS 13.0 | 27-40-06-02 |
| ROHS | Conform |
