0169300000 TS 32X15 2M/AL/BK (2 pcs.)
- Brand:Weidmüller
- Product Code: 0169300000
- Availability: Out Of Stock

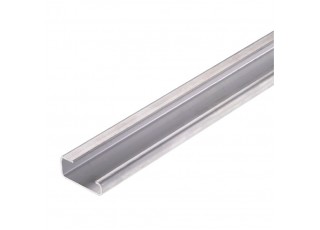

Rail, TS 32, without slot, Aluminium, untreated
| Version | Rail, TS 32, without slot, Aluminium, untreated |
| Order No. | 0169300000 |
| Type | TS 32X15 2M/AL/BK |
| GTIN (EAN) | 4008190105167 |
| Qty. | 2 |
| 15 mm | |
| Depth (inches) | 0.591 inch |
| Height | 33 mm |
| Height (inches) | 1.299 inch |
| Width | 2,000 mm |
| Width (inches) | 78.74 inch |
| Net weight | 235.5 g |
| Installation advice | Direct mounting |
| Length of the terminal rail |
|
| Material | Aluminium |
| Permitted thermal current for PEN function, max. | 192 A |
| Pre-punched mounting rail | No |
| Short circuit strength corresponds to E-Cu wire | 70 mm² |
| Short-time withstand current per second according to IEC 60947-7-2 | 8.4 kA |
| Slit gap |
|
| Slit length |
|
| Slit width |
|
| Standards | DIN EN 60715 |
| Surface finish | untreated |
| Thickness | 1.5 mm |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_58812) |
| Engineering Data | [Zuken E3.S](LINK/CAE_EN.html) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.0169300000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=0169300000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=0169300000&norm=0) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001285 |
| ETIM 7.0 | EC001285 |
| ETIM 8.0 | EC001285 |
| ETIM 9.0 | EC001285 |
| ECLASS 9.0 | 27-40-06-02 |
| ECLASS 9.1 | 27-40-06-02 |
| ECLASS 10.0 | 27-40-06-02 |
| ECLASS 11.0 | 27-40-06-02 |
| ECLASS 12.0 | 27-40-06-02 |
| ECLASS 13.0 | 27-40-06-02 |
| ROHS | Conform |
