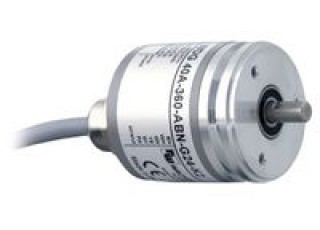

40A100ABNG24K2 Wachendorff Incremental Encoder 100 ppr 12000rpm Solid 10 → 30 V dc

40A100ABNG24K2 Wachendorff Incremental Encoder 100 ppr 12000rpm Solid 10 → 30 V dc

  • Brand:Wachendorff
  • Product Code: 40A100ABNG24K2
  • Availability: Out Of Stock
Pulses Per Revolution = 100
Encoder Technology = Incremental
Maximum Revolutions = 12000rpm
Output Signal Type = HTL
Shaft Type = Solid
Supply Voltage = 10 → 30 V dc
IP Rating = IP65, IP67
Overall Height = 55mm
Minimum Operating Temperature = -20°C
Maximum Operating Temperature = +80°C
Switching Frequency = 200 kHz

WDG40A Incremental Rotary Transducer, Shaft, 40 mm. The WDG 40 A is a robust, small and cost-effective rotary transducer. It can be used wherever precise recordings of paths, positions or speeds are required.
