Supply Cable - M12 Power RKP46PLB-15-RSP46PLB/TXL
Cable length (m)15ApplicationPowerDesignExtension CableConnector AFemale, M12 × 1, Straight, L-codedNumber of pins4Coupling nut/screw material ABrassConnector BMale, M12 × 1, Straight, L-codedNumber of Pins4Coupling nut/screw material BBrassCurrent (A)16Cable qualityPURCable colorBlackSpecial featur...

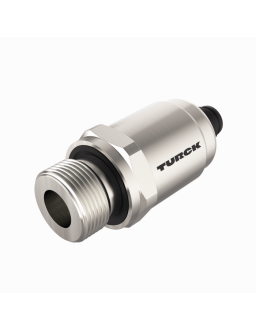

Pressure Transmitter PT0.1R-1544-IX-H1143/D840
Protection classIP67DesignWithout displayProcess connectionG 1/2” male thread DIN 3852-E (rear sealing) with 11-mm boreElectrical connectionConnectorConnector typeM12 × 1Housing materialStainless-steel/PlasticHousing quality1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0Media temperature min. (°C...
PROFIBUS Cable RSSW-D9T451-0.5M
Network protocolPROFIBUS-DPCable length (m)0.5ApplicationDataDesignExtension CableConnector AMale, M12 × 1, Straight, B-codedNumber of pins5Coupling nut/screw material ABrassConnector BMale, D-Sub, AngledNumber of Pins9Voltage (V)250Current (A)4Cable qualityPURCable colorVioletApprovalsULAmbient tem...
LED Linear Light WLS28-2XWW850DSPWMQ
Protection classIP67, IP69DesignRectangularElectrical connectionConnectorConnector typeM12 × 1Housing materialMetalHousing qualityALAmbient temperature min. (°C)-25Ambient temperature max. (°C)70Beam anglewide beam 40-80°FunctionLinear lightLight typeWhiteConstruction size890 x 28 x 21 mmDimmableYes...

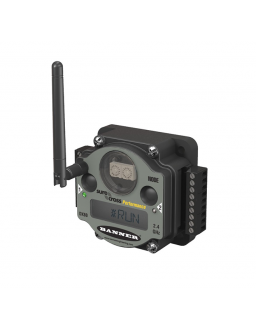

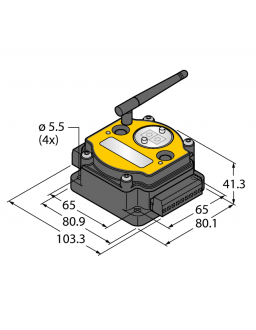

Radio Transmission System DX80N2X2S-P7C
Protection classIP20ApprovalsCE, CSA, ATEXDesignRectangularCommunication protocolRS485Housing materialPlasticHousing qualityPCAmbient temperature min. (°C)-20Ambient temperature max. (°C)80Max. range (mm)3200000FunctionStar topologyOperating voltageDCAntenna connectionRP-SMA female connectorInput ty...
Photoelectric Sensor SM30SRLMC1 W/30
Protection classIP67Switching element functionConnection programmableOutput functionPNP/NPNCable length (m)9DesignTubeElectrical connectionCableHousing materialMetalHousing qualityStainless steelAmbient temperature min. (°C)-40Ambient temperature max. (°C)70Max. range (mm)150000FunctionOpposed mode ...
Photoelectric Sensor T183EQ3
Protection classIP67, IP69DesignTubeElectrical connectionConnectorConnector typeM12 × 1Housing materialPlasticHousing qualityThermoplastic materialAmbient temperature min. (°C)-40Ambient temperature max. (°C)70Max. range (mm)20000FunctionOpposed mode sensorLight typeIRConstruction sizeM18 x 1.....
Safety Light Curtain SLPCP25-1530
Protection classIP65Switching element function2 x NC contactOutput function2 × PNPDesignRectangularElectrical connectionCable entry for flat connectorHousing materialMetalHousing qualityALAmbient temperature min. (°C)0Ambient temperature max. (°C)55Max. range (mm)7000FunctionLight screenScan field (...
I/O Module for DeviceNet Fieldbus FDNL-S1600-T
Protection classIP67Network protocolDeviceNetAmbient temperature min. (°C)-40Ambient temperature max. (°C)70Operating voltageDCNumber of channels16Connection technology signalM12Signal typeDigital input.....
RSP56PKB-1/TXL
Cable length (m)1ApplicationPowerDesignConnection CableConnector AMale, M12 × 1, Straight, K-codedNumber of pins4+PECoupling nut/screw material ABrassVoltage (V)600.....
Pressure-Resistant Linear Position Sensor LTX5000M-F10-SSI2-GAF1-X3-H1161
Protection classIP68DesignRodMediumliquidsCommunication protocolSSiElectrical connectionConnectorConnector typeM12 × 1Housing materialMetalHousing qualityALAmbient temperature min. (°C)-40Ambient temperature max. (°C)85Measuring principleMagnetostrictiveOperating voltageDCMeasuring range (mm)5000Mea...
Pressure-Resistant Linear Position Sensor LTX1900M-F10-SSI2-GAF1-X3-H1161
Protection classIP68DesignRodMediumliquidsCommunication protocolSSiElectrical connectionConnectorConnector typeM12 × 1Housing materialMetalHousing qualityALAmbient temperature min. (°C)-40Ambient temperature max. (°C)85Measuring principleMagnetostrictiveOperating voltageDCMeasuring range (mm)1900Mea...
