Pressure Transmitter PT1R-1008-I2-H1143/X
Protection classIP67Output functionAnalog output currentApprovalscULusDesignWithout displayProcess connectionG 1/2” male thread, rear sealing and manometer (combi)Electrical connectionConnectorConnector typeM12 × 1Housing materialStainless-steel/PlasticHousing quality1.4404 (AISI 316L)/polyarylamide...

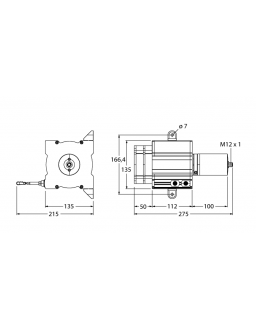

Draw-Wire DW15000-135-PA-H1441
Protection classIP65Output functionPotentiometerDesignDraw WireElectrical connectionConnectorConnector typeM12 × 1Housing materialTitanium anodized aluminiumAmbient temperature min. (°C)-20Ambient temperature max. (°C)85Operating voltageDCMeasuring range (mm)15000Measuring range15000…0.0 mm.....
Incremental Encoder REI-12H8T-4B2500-H1181
Protection classIP67Output functionRS422/TTLElectrical connectionConnectorConnector typeM12 × 1Housing materialDie-cast zincAmbient temperature min. (°C)-40Ambient temperature max. (°C)85Measuring principleOpticalOutput typeIncrementalShaft TypeHollow shaftShaft diameter D (mm)8Flange diameter (mm)5...

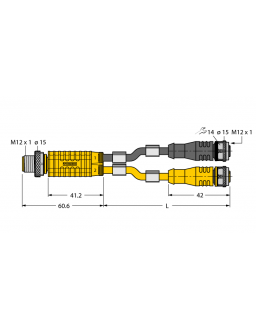

2-Way Splitter VBRS4.4-2RKC4.880T-0.15/0.15/TXL4000
Cable length (m)0.15ApplicationSignalDesignY-splitter with cableConnector AMale, M12 × 1, StraightNumber of pins4Coupling nut/screw material ABrassConnector B2 x Female, M12 × 1, StraightCoupling nut/screw material BBrassVoltage (V)250Current (A)4Cable qualityPURAmbient temperature min. (°C)-40Ambie...

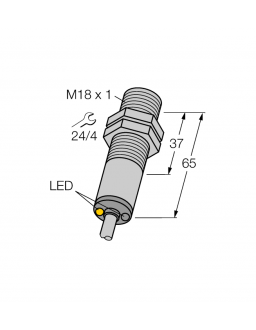

Photoelectric Sensor M18SP6FF50
Protection classIP69Switching element functionConnection programmableOutput functionPNPCable length (m)2DesignTubeElectrical connectionCableHousing materialMetalHousing qualityStainless steelAmbient temperature min. (°C)-40Ambient temperature max. (°C)70Max. range (mm)50FunctionProximity switchLight...
Incremental Encoder REI-12H10E-4B2048-H1181
Protection classIP67Output functionRS422/TTLElectrical connectionConnectorConnector typeM12 × 1Housing materialDie-cast zincAmbient temperature min. (°C)-40Ambient temperature max. (°C)85Measuring principleOpticalOutput typeIncrementalShaft TypeHollow shaftShaft diameter D (mm)10Flange diameter (mm)...
Actuator and Sensor Cable, PVC WKCV4.4T-P7X2-25/TEL
Cable length (m)25ApplicationSignalDesignConnection CableConnector AFemale, M12 × 1, Angled, A-codedNumber of pins4Coupling nut/screw material AStainless SteelCurrent (A)4Cable qualityPVCCable colorBlackSpecial featuresLEDApprovalscULusAmbient temperature min. (°C)-5Ambient temperature max. (°C)80Co...
Pressure Transmitter PT160R-2008-U1-H1141/X
Protection classIP67Output functionAnalog output voltageApprovalscULusDesignWithout displayProcess connectionG 1/2” male thread, rear sealing and manometer (combi)Electrical connectionConnectorConnector typeM12 × 1Housing materialStainless-steel/PlasticHousing quality1.4404 (AISI 316L)/polyarylamide...

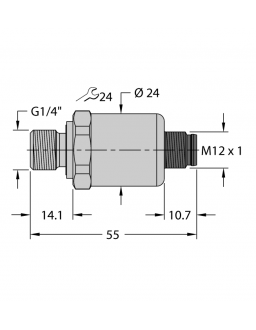

Pressure Transmitter PT1V-1104-I2-H1141
Protection classIP69KOutput functionAnalog output currentDesignWithout displayProcess connectionG1/4″ male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ringElectrical connectionConnectorConnector typeM12 × 1Housing materialStainless-steel/PlasticHousing quality1.4404...

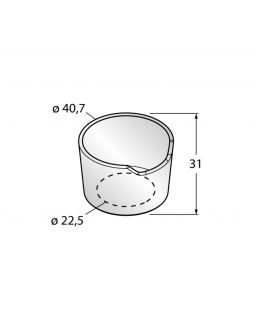

Accessories TC-K30-CL
Housing materialPlasticHousing qualityPolycarbonate/ABS.....
Pressure Transmitter PT60R-1001-I2-DA91/X
Protection classIP65Output functionAnalog output currentApprovalscULusDesignWithout displayProcess connectionG 1/4” female thread (front sealing)Electrical connectionConnectorConnector typeDIN EN 175301-803 Form AHousing materialStainless-steel/PlasticHousing quality1.4404 (AISI 316L)/polyarylamide ...
Actuator and Sensor Cable, PUR WKC4.4T-3/TXL
Cable length (m)3ApplicationSignalDesignConnection CableConnector AFemale, M12 × 1, Angled, A-codedNumber of pins4Coupling nut/screw material ABrassVoltage (V)250Current (A)4Cable qualityPURCable colorBlackSpecial featuresSuitable for drag chain useApprovalscULusAmbient temperature min. (°C)-25Ambie...
