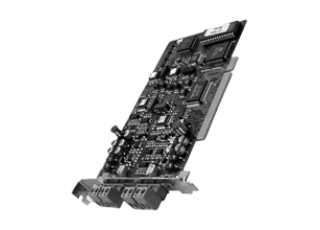

AS-Interface master VBM-CTR-PCI-DM
- Brand:Pepperl+Fuchs
- Product Code: VBM-CTR-PCI-DM
- Availability: Out Of Stock
PCI double master for 2 AS-Interface networks
Datasheet excerpt: Technical data of VBM-CTR-PCI-DM
| Product Description |
|---|
| PCI double master for 2 AS-Interface networks |
| General specifications | ||
|---|---|---|
| AS-Interface specification | V2.11 | |
| PLC-Functionality | integrated | |
| Electrical specifications | ||
| Insulation voltage | ≥ 500 V | |
| Rated operating voltage | 5 V DC and AS-Interface voltage | |
| Rated operating current | ≤ 200 mA from power supply, ≤ 70 mA from AS-Interface | |
| Interface | ||
| Interface type | 32 bit PCI bus interface | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Degree of protection | EN 60529 | |
| Ambient conditions | ||
| Ambient temperature | 0 ... 55 °C (32 ... 131 °F) | |
| Storage temperature | -25 ... 70 °C (-13 ... 158 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP20 | |
| Construction type | Short PCI card | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27242607 |
| ECLASS 12.0 | 27242607 |
| ECLASS 11.0 | 27242607 |
| ECLASS 10.0.1 | 27242607 |
| ECLASS 9.0 | 27242607 |
| ECLASS 8.0 | 27242607 |
| ECLASS 5.1 | 27242607 |
| ETIM 9.0 | EC001603 |
| ETIM 8.0 | EC001603 |
| ETIM 7.0 | EC001603 |
| ETIM 6.0 | EC001603 |
| ETIM 5.0 | EC001603 |
| UNSPSC 12.1 | 39121535 |
