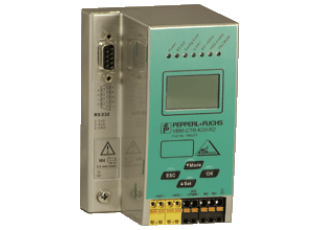

| General specifications |
| AS-Interface specification | V3.0 |
| PLC-Functionality | integrated |
| Earth fault detection | integrated |
| EMC monitoring | integrated |
| Diagnostics function | Extended function via display |
| UL File Number | E223772 only from low voltage, limited energy source (SELV or PELV) or listed Class 2 source |
| Functional safety related parameters |
| MTTFd | 180 a at 30 °C |
| Indicators/operating means |
| Display | Illuminated graphical LC display for addressing and error messages |
| LED RS 232 | interface in operation; LED green |
| LED AS-i ACTIVE | AS-Interface operation normal; LED green |
| LED CONFIG ERR | configuration error; LED red |
| LED PRG ENABLE | autom. programming; LED green |
| LED POWER | voltage ON; LED green |
| LED PRJ MODE | projecting mode active; LED yellow |
| LED U AS-i | AS-Interface voltage; LED green |
| Switch SET | Selection and setting of a slave address |
| OK button | Mode selection traditional-graphical/confirmation |
| Button MODE | Mode selection PRJ-operation/save configuration/cursor |
| ESC button | Mode selection traditional-graphical/cancel |
| Electrical specifications |
| Insulation voltage | ≥ 500 V |
| Rated operating voltage | from AS-Interface |
| Rated operating current | ≤ 150 mA |
| Interface |
| Interface type | RS 232 |
| Transfer rate | 1200, 2400, 4800, 9600, 19200, 28800, 38400, 57600 or 11500 Bit/s , Automatic baud rate detection |
| Cable length | max. 30 m |
| Connection |
| AS-Interface | spring terminals, removable |
| Serial interfaces | 9-pin Sub-D socket |
| Directive conformity |
| Electromagnetic compatibility | |
| Directive 2014/30/EU | EN 62026-2:2013 |
| Standard conformity |
| Electromagnetic compatibility | EN 61326 |
| Degree of protection | EN 60529:2000 |
| AS-Interface | EN 62026-2:2013 |
| Approvals and certificates |
| UL approval | An isolated source with a secondary open circuit voltage of ≤ 30 VDC with a 3 A maximum over current protection. Over current protection is not required when a Class 2 source is employed.
UL mark does not provide UL certification for any functional safety rating or aspects of the device. |
| Ambient conditions |
| Ambient temperature | 0 ... 55 °C (32 ... 131 °F) |
| Storage temperature | -15 ... 75 °C (5 ... 167 °F) |
| Mechanical specifications |
| Degree of protection | IP20 |
| Mass | 460 g |
| Construction type | Low profile housing , Stainless steel |
