Connection cable, Ethernet V1SD-G-GN0,7M-PUR-E1S-V1D-G
- Brand:Pepperl+Fuchs
- Product Code: V1SD-G-GN0,7M-PUR-E1S-V1D-G
- Availability: Out Of Stock

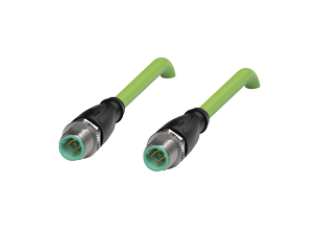

Ethernet bus cable M12 plug straight to M12 plug straight D-coded, 4-pin, PUR cable green, Cat5e, shielded, UL approved, drag chain suitable
Datasheet excerpt: Technical data of V1SD-G-GN0,7M-PUR-E1S-V1D-G
| Product Description |
|---|
| Ethernet bus cable M12 plug straight to M12 plug straight D-coded, 4-pin, PUR cable green, Cat5e, shielded, UL approved, drag chain suitable |
| General specifications | ||
|---|---|---|
| Connector 1 | ||
| Connection | plug | |
| Construction type | M12 | |
| Style | straight | |
| Locking | screw connection | |
| Number of pins | 4 | |
| Coding | D-coded | |
| Connector 2 | ||
| Connection | plug | |
| Construction type | M12 | |
| Style | straight | |
| Locking | screw connection | |
| Number of pins | 4 | |
| Coding | D-coded | |
| Electrical specifications | ||
| Operating voltage | max. 48 V AC / 60 V DC | |
| Conformity | ||
| Degree of protection | EN 60529 | |
| Plug connection | connector M12 x 1 : IEC 61076-2-101 | |
| Component category | CAT5 (IEC 11801) , CAT5e (IEC 61156-6) | |
| Flammability | IEC 60332-1-2 / UL 2556 | |
| Approvals and certificates | ||
| UL approval | AWM STYLE 20549 80 °C 300V AWM I A/B 80 °C 300V FT2 (cable) | |
| UL File Number | E231213 | |
| Ambient conditions | ||
| Ambient temperature | ||
| Plug connector | -40 ... 90 °C (-40 ... 194 °F) | |
| Cable, fixed | -30 ... 70 °C (-22 ... 158 °F) , UL: -20 ... 70 °C (-4 ... 158 °F) | |
| Cable, flexing | -20 ... 70 °C (-4 ... 158 °F) | |
| Mechanical specifications | ||
| Plug connector | ||
| Tightening torque | 0.6 Nm | |
| Loosening protection | available | |
| Tool installation | straight knurling and hexagon nut SW = 14 mm | |
| Mating cycles | min. 100 | |
| Shielding | shield connected to screw connection | |
| Degree of protection | IP68 / IP69 | |
| Cable | according to IEC/EN 60228 (DIN VDE 0295) class 5 | |
| Sheath diameter | 6 mm | |
| Bending radius | > 10 x cable diameter, moving > 8 x cable diameter, fixed | |
| Sheath stripping force | max. 60 N / 100 mm | |
| Sheath color | green (similar to RAL 6018) | |
| Number of cores | 4 | |
| Core cross section | 0.34 mm2 / 22 AWG | |
| Cores color | Core 1: yellow Core 2: white Core 3: orange Core 4: blue | |
| Core construction | 7 x 0.254 mm ∅ twisted quad | |
| Shield | aluminum-lined polyester foil Tinned copper braiding | |
| Length | 0.7 m | |
| Drag chain suitability | ||
| Drag chain cycles | max. 1000000 | |
| Motion velocity | max. 3 m/s | |
| Traverse distance | max. 5 m | |
| Acceleration | max. 2 m/s2 | |
| Material | ||
| PWIS free | yes | |
| Halogen-free | yes | |
| Plug connector | ||
| Screw connection | Zinc diecast, nickel-plated | |
| Body | TPU, black | |
| Contact surface | Au | |
| Flammability | V-2 | |
| Cable | ||
| Sheathing | PUR based on polyether | |
| Core insulation | PP | |
| Flammability | FT2 | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 270603 |
| ECLASS 12.0 | 27060307 |
| ECLASS 11.0 | 27060307 |
| ECLASS 10.0.1 | 27060307 |
| ECLASS 9.0 | 27060390 |
| ECLASS 8.0 | 27060390 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC001855 |
| ETIM 8.0 | EC001855 |
| ETIM 7.0 | EC001855 |
| ETIM 6.0 | EC001855 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31251501 |
