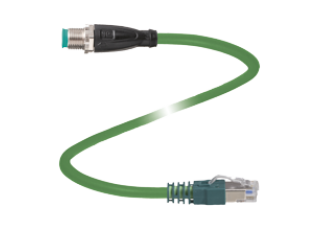

Connection cable, Ethernet V19S-G-GN1M-PUR-E2S-V45-G
- Brand:Pepperl+Fuchs
- Product Code: V19S-G-GN1M-PUR-E2S-V45-G
- Availability: Out Of Stock
Ethernet bus cable M12 plug straight A-coded to RJ45 plug straight Ethernet-coded, 8-pin, PUR cable green, Cat5, pairs shielded and overall shield
Datasheet excerpt: Technical data of V19S-G-GN1M-PUR-E2S-V45-G
| Product Description |
|---|
| Ethernet bus cable M12 plug straight A-coded to RJ45 plug straight Ethernet-coded, 8-pin, PUR cable green, Cat5, pairs shielded and overall shield |
| General specifications | ||
|---|---|---|
| Connector 1 | ||
| Connection | plug | |
| Construction type | M12 | |
| Style | straight | |
| Locking | screw connection | |
| Number of pins | 8 | |
| Coding | A-coded | |
| Connector 2 | ||
| Connection | plug | |
| Construction type | RJ45 | |
| Style | straight | |
| Locking | snap locking | |
| Number of pins | 8 | |
| Coding | EtherNet/IP | |
| Electrical specifications | ||
| Operating voltage | max. 30 V AC/DC | |
| Operating current | max. 1 A | |
| Conformity | ||
| Degree of protection | EN 60529 | |
| Fieldbus standard | IEEE 802.3an 10GBASE-T | |
| Plug connection | connector M12 x 1 : IEC 61076-2-101 connector RJ45 : IEC 60603-7 | |
| Component category | CAT5 (IEC 11801) , CAT5e (IEC 61156-6) | |
| Flammability | IEC 60332-1-2 , CMX | |
| Halogen-free | IEC 60754-2 | |
| Ambient conditions | ||
| Ambient temperature | ||
| Connector 1 | -40 ... 90 °C (-40 ... 194 °F) | |
| Connector 2 | -25 ... 60 °C (-13 ... 140 °F) | |
| Cable, fixed | -40 ... 85 °C (-40 ... 185 °F) | |
| Cable, flexing | -10 ... 60 °C (14 ... 140 °F) | |
| Pollution degree | 3 | |
| Mechanical specifications | ||
| Connector 1 | ||
| Tightening torque | 0.6 Nm | |
| Loosening protection | available | |
| Tool installation | straight knurling and hexagon nut SW = 14 mm | |
| Mating cycles | min. 100 | |
| Shielding | shield connected to screw connection | |
| Degree of protection | IP68 / IP69 | |
| Connector 2 | ||
| Loosening protection | available | |
| Mating cycles | min. 100 | |
| Shielding | shield connected to connector | |
| Degree of protection | IP20 | |
| Cable | according to IEC/EN 60228 (DIN VDE 0295) class 5 | |
| Sheath diameter | 6.2 mm | |
| Bending radius | max. 50 mm active max. 25 mm fixed | |
| Sheath color | green (similar to RAL 6018) | |
| Number of cores | 8 | |
| Core cross section | 0.14 mm2 / 26 AWG | |
| Cores color | Core 1-5: white/blue Core 2-7: white/brown Core 3-8: brown Core 4-2: orange Core 5-3: white/green Core 6-1: white/orange Core 7-4: blue Core 8-6: green | |
| Core construction | 7 x 0.404 mm ∅ twisted pairs , twisted pair shield | |
| Shield | tinned copper braiding, 60 % coverage twisted pair shield : aluminum-lined polyester foil | |
| Length | 1 m | |
| Cable code | Li 02YSC 11Y 4 x 2 x 0,14 (AWG26/7) | |
| Material | ||
| Halogen-free | yes | |
| Connector 1 | ||
| Screw connection | Zinc diecast, nickel-plated | |
| Body | TPU, black | |
| Contact surface | gold plated (Au) | |
| Flammability | V-2 | |
| Connector 2 | ||
| Body | PA, green | |
| Flammability | V-0 | |
| Cable | ||
| Sheathing | PUR | |
| Core insulation | PE | |
| UV resistance | yes | |
| Oil resistance | yes | |
| Flammability | CMX | |
