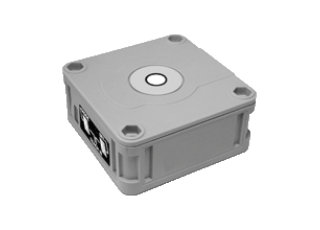

Ultrasonic sensor UB500-F42-U-V15
- Brand:Pepperl+Fuchs
- Product Code: UB500-F42-U-V15
- Availability: Out Of Stock
Single head system, Analog output 0 ... 10 V, Extremely small unusable area, TEACH-IN, Series: -F42, Operating voltage: 17 ... 30 V DC , ripple 10 %SS, Output type: 1 analog output 0 ... 10 V, UL approval: cULus Listed, Class 2 Power Source, CCC approval: CCC approval / marking not required for products rated ≤36 V, Connection type: Connector plug M12 x 1 , 5-pin, Housing: ABS
Datasheet excerpt: Technical data of UB500-F42-U-V15
| Product Description |
|---|
| Single head system |
| General specifications | ||
|---|---|---|
| Sensing range | 30 ... 500 mm | |
| Adjustment range | 50 ... 500 mm | |
| Dead band | 0 ... 30 mm | |
| Standard target plate | 100 mm x 100 mm | |
| Transducer frequency | approx. 390 kHz | |
| Response delay | approx. 50 ms | |
| Indicators/operating means | ||
| LED green | solid green: Power on | |
| LED yellow | solid: object in evaluation range flashing: program function | |
| LED red | normal operation: "fault" program function: no object detected | |
| Electrical specifications | ||
| Operating voltage | 17 ... 30 V DC , ripple 10 %SS | |
| No-load supply current | ≤ 50 mA | |
| Input/Output | ||
| Synchronization | bi-directional 0 level -UB...+1 V 1 level: +4 V...+UB input impedance: > 12 KOhm synchronization pulse: ≥ 100 µs, synchronization interpulse period: ≥ 2 ms | |
| Synchronization frequency | ||
| Common mode operation | max. 95 Hz | |
| Multiplex operation | ≤ 95/n Hz, n = number of sensors | |
| Output | ||
| Output type | 1 analog output 0 ... 10 V | |
| Default setting | evaluation limit A1: 50 mm , evaluation limit A2: 500 mm , wide sound lobe | |
| Resolution | 0.2 mm at max. sensing range | |
| Deviation of the characteristic curve | ± 1 % of full-scale value | |
| Repeat accuracy | ± 0.1 % of full-scale value | |
| Load impedance | > 1 kOhm | |
| Temperature influence | ± 1 % of full-scale value | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Standards | EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 EN 60947-5-7:2003 IEC 60947-5-7:2003 | |
| Approvals and certificates | ||
| UL approval | cULus Listed, Class 2 Power Source | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) | |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) | |
| Mechanical specifications | ||
| Connection type | Connector plug M12 x 1 , 5-pin | |
| Degree of protection | IP54 | |
| Material | ||
| Housing | ABS | |
| Transducer | epoxy resin/hollow glass sphere mixture; foam polyurethane, cover PBT | |
| Mass | 140 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27272803 |
| ECLASS 12.0 | 27272803 |
| ECLASS 11.0 | 27272803 |
| ECLASS 10.0.1 | 27272803 |
| ECLASS 9.0 | 27272803 |
| ECLASS 8.0 | 27272803 |
| ECLASS 5.1 | 27272803 |
| ETIM 9.0 | EC001849 |
| ETIM 8.0 | EC001849 |
| ETIM 7.0 | EC001849 |
| ETIM 6.0 | EC001849 |
| ETIM 5.0 | EC001849 |
| UNSPSC 12.1 | 41111960 |
