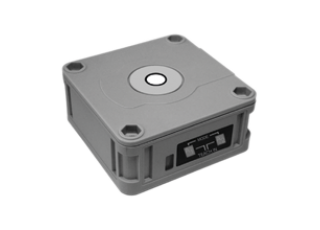

Ultrasonic sensor UB400-F42-UK-V95
- Brand:Pepperl+Fuchs
- Product Code: UB400-F42-UK-V95
- Availability: Out Of Stock
Single head system, Relay output for high power, Extremely small unusable area, TEACH-IN, Series: -F42, Operating voltage: 22 ... 253 V AC/DC, Output type: 1 relay output, Connection: 5-pin V95 connector (7/8"-16 UN 2A), Housing: PBT
Datasheet excerpt: Technical data of UB400-F42-UK-V95
| Product Description |
|---|
| Single head system |
| General specifications | ||
|---|---|---|
| Sensing range | 40 ... 400 mm | |
| Adjustment range | 50 ... 400 mm | |
| Dead band | 0 ... 40 mm | |
| Standard target plate | 100 mm x 100 mm | |
| Transducer frequency | approx. 390 kHz | |
| Response delay | approx. 50 ms | |
| Indicators/operating means | ||
| LED green | solid green: Power on | |
| LED yellow | solid: switching state switch output flashing: program function | |
| LED red | normal operation: "fault" program function: no object detected | |
| Electrical specifications | ||
| Fusing | ≤ 3 A Slow-blow fuse in accordance with IEC 60127-2 Sheet 5 required. Recommendation: after a short circuit, check that the device is functioning correctly. | |
| Operating voltage | 22 ... 253 V AC/DC | |
| No-load supply current | ≤ 60 mA | |
| Time delay before availability | ≤ 800 ms | |
| Output | ||
| Output type | 1 relay output | |
| Rated operating current | 3 A | |
| Repeat accuracy | ≤ 0.5 % of switching point | |
| Switching frequency | ≤ 8 Hz | |
| Range hysteresis | 1 % of the set operating distance | |
| Temperature influence | ± 1 % of full-scale value | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Standards | EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 | |
| Ambient conditions | ||
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) | |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP65 | |
| Connection | 5-pin V95 connector (7/8"-16 UN 2A) | |
| Material | ||
| Housing | PBT | |
| Transducer | epoxy resin/hollow glass sphere mixture; foam polyurethane, cover PBT | |
| Mass | 260 g | |
