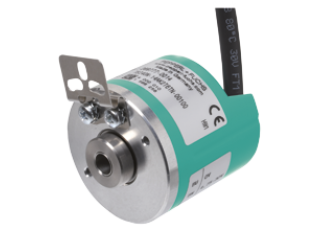

Incremental rotary encoder TSI40N
- Brand:Pepperl+Fuchs
- Product Code: TSI40N
- Availability: Out Of Stock
Compact design, Up to 1024 ppr, 4.75 V ... 30 V with short-circuit proof push-pull output, RS 422 functionality at 5 V operation, Tangential cable outlet, Output type: push-pull, incremental or RS-422, incremental
Datasheet excerpt: Technical data of TSI40N
| General specifications | ||
|---|---|---|
| Detection type | photoelectric sampling | |
| Pulse count | max. 1024 | |
| Electrical specifications | ||
| Operating voltage | 4.75 ... 30 V DC 5 V DC for RS-422 | |
| No-load supply current | max. 55 mA | |
| Output | ||
| Output type | push-pull, incremental or RS-422, incremental | |
| Voltage drop | ≤ 2.5 V (< 2.5 V) | |
| Load current | max. per channel 30 mA , short-circuit protected (max. per channel 20 mA, conditionally short-circuit proof) | |
| Output frequency | max. 100 kHz (max. 100 kHz) | |
| Rise time | 980 ns (225 ns) | |
| De-energized delay | 980 ns (225 ns) | |
| Connection | ||
| Cable | ∅6 mm, 8 x 0,128 mm2 connection with plug M12, 8-pin, L = 0.2 m | |
| Standard conformity | ||
| Degree of protection | DIN EN 60529, IP54 | |
| Climatic testing | DIN EN 60068-2-3, no moisture condensation | |
| Emitted interference | EN 61000-6-4:2007/A1:2011 | |
| Noise immunity | EN 61000-6-2:2005 | |
| Shock resistance | DIN EN 60068-2-27, 100 g, 6 ms | |
| Vibration resistance | DIN EN 60068-2-6, 10 g, 10 ... 2000 Hz | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose, Class 2 Power Source | |
| Maximum permissible ambient temperature | max. 60 °C (max. 140 °F) | |
| Ambient conditions | ||
| Operating temperature | -10 ... 70 °C (14 ... 158 °F) | |
| Storage temperature | -25 ... 85 °C (-13 ... 185 °F) | |
| Mechanical specifications | ||
| Material | ||
| Housing | Polycarbonate | |
| Flange | 3.1645 aluminum | |
| Shaft | Stainless steel 1.4305 / AISI 303 | |
| Mass | approx. 180 g | |
| Rotational speed | max. 6000 min -1 | |
| Moment of inertia | ≤ 4.3 gcm2 | |
| Starting torque | ≤ 0.2 Ncm | |
| Shaft load | ||
| Angle offset | 1 ° | |
| Axial offset | max. 1 mm | |
| Life span | ≥ 2 x 109 revolutions (max. shaft loading) | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270501 |
| ECLASS 12.0 | 27270501 |
| ECLASS 11.0 | 27270501 |
| ECLASS 10.0.1 | 27270501 |
| ECLASS 9.0 | 27270501 |
| ECLASS 8.0 | 27270501 |
| ECLASS 5.1 | 27270501 |
| ETIM 9.0 | EC001486 |
| ETIM 8.0 | EC001486 |
| ETIM 7.0 | EC001486 |
| ETIM 6.0 | EC001486 |
| ETIM 5.0 | EC001486 |
| UNSPSC 12.1 | 39121527 |
