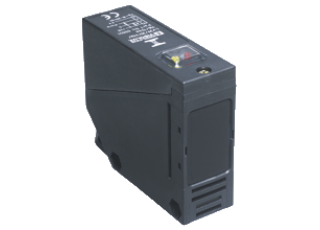

Retroreflective sensor RL39-54/32/40a/82a/116
- Brand:Pepperl+Fuchs
- Product Code: RL39-54/32/40a/82a/116
- Availability: Out Of Stock
Retroreflective sensor for standard applications, polarization filter, detection range 12 m, red light, sensitivity adjuster, light/dark on, prefault output, PNP output, terminal compartment, Glare protected with polarization filter, Visible red light, Light-on/dark-on, switchable, Degree of protection IP67
Datasheet excerpt: Technical data of RL39-54/32/40a/82a/116
| Product Description |
|---|
| Retroreflective sensor for standard applications, polarization filter, detection range 12 m, red light, sensitivity adjuster, light/dark on, prefault output, PNP output, terminal compartment |
| General specifications | ||
|---|---|---|
| Effective detection range | 0 ... 5 m | |
| Reflector distance | 0.1 ... 5 m | |
| Threshold detection range | 6 m | |
| Reference target | H50 reflector | |
| Light source | LED red | |
| Light type | modulated visible red light | |
| Polarization filter | yes | |
| Ambient light limit | IEC / EN 60947-5-2 , 10000 Lux | |
| Functional safety related parameters | ||
| MTTFd | 800 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| Function indicator | LED yellow: switching state LED red: pre-fault indication | |
| Control elements | Sensing range adjuster, light-on/dark-on changeover switch | |
| Electrical specifications | ||
| Operating voltage | 10 ... 30 V DC | |
| Ripple | 10 % | |
| No-load supply current | ≤ 20 mA | |
| Time delay before availability | ≤ 300 ms | |
| Output | ||
| Stability alarm output | 1 PNP, active when falling short of the stability control | |
| Switching type | light/dark on | |
| Signal output | 1 PNP output, short-circuit protected, reverse polarity protected, open collector | |
| Switching voltage | max. 30 V DC | |
| Switching current | max. 200 mA , resistive load | |
| Voltage drop | ≤ 3 V | |
| Switching frequency | ≤ 300 Hz | |
| Response time | ≤ 1.5 ms | |
| Conformity | ||
| Product standard | EN 60947-5-2 | |
| Approvals and certificates | ||
| EAC conformity | TR CU 020/2011 | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Approvals | CE | |
| Ambient conditions | ||
| Ambient temperature | -25 ... 55 °C (-13 ... 131 °F) | |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) | |
| Mechanical specifications | ||
| Housing width | 25 mm | |
| Housing height | 64 mm | |
| Housing depth | 75 mm | |
| Degree of protection | IP67 | |
| Connection | terminal compartment PG9, ≤ 2.5 mm2 | |
| Material | ||
| Housing | PBT | |
| Optical face | PMMA | |
| Mass | approx. 100 g | |
| General information | ||
| Scope of delivery | Mounting aid , Reflector | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270902 |
| ECLASS 12.0 | 27270902 |
| ECLASS 11.0 | 27270902 |
| ECLASS 10.0.1 | 27270902 |
| ECLASS 9.0 | 27270902 |
| ECLASS 8.0 | 27270902 |
| ECLASS 5.1 | 27270902 |
| ETIM 9.0 | EC002717 |
| ETIM 8.0 | EC002717 |
| ETIM 7.0 | EC002717 |
| ETIM 6.0 | EC002717 |
| ETIM 5.0 | EC002717 |
| UNSPSC 12.1 | 39121528 |
