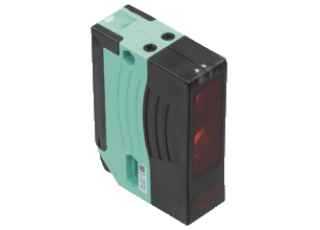

Retroreflective sensor RL28-54-G-Z/47/116
- Brand:Pepperl+Fuchs
- Product Code: RL28-54-G-Z/47/116
- Availability: Out Of Stock
Retroreflective sensor with polarization filter for clear object detection, Detects transparent objects, i.e., clear glass, PET and transparent films, TEACH-IN switch for setting the contrast detection levels, Automatic adjustment in case of soiling in contrast detection mode, Ultra bright LEDs for power on, weak signal indication and switching state, Flashing power on LED in case of short-circuit
Datasheet excerpt: Technical data of RL28-54-G-Z/47/116
| Product Description |
|---|
| Retroreflective sensor with polarization filter for clear object detection |
| General specifications | ||
|---|---|---|
| Effective detection range | 0 ... 5.6 m | |
| Reflector distance | 0 ... 5.6 m | |
| Threshold detection range | 7 m | |
| Reference target | H85-2 reflector | |
| Light source | LED | |
| Light type | modulated visible red light , 660 nm | |
| Polarization filter | yes | |
| Diameter of the light spot | approx. 90 mm at a distance of 5.6 m | |
| Opening angle | Emitter: 1 ° Receiver: 1.2 ° | |
| Ambient light limit | 50000 Lux | |
| Functional safety related parameters | ||
| MTTFd | 1020 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| Operation indicator | LED green, flashes in case of short-circuit | |
| Function indicator | 2 LEDs yellow for switching state, stability control, TEACH-IN and contrast detection mode | |
| Control elements | rotary switch for light/dark, 5-step switch for contrast recognition adjustment | |
| Contrast detection levels | 10 % - clean, water filled PET bottles 18 % - clear glass bottles 40 % - colored glass or opaque materials adjustable by Teach-In key or external wire | |
| Electrical specifications | ||
| Operating voltage | 10 ... 30 V DC | |
| Ripple | 10 % | |
| No-load supply current | ≤ 50 mA | |
| Input | ||
| Function input | Ext. Teach-In input (ET) | |
| Output | ||
| Switching type | light/dark on switchable | |
| Signal output | 2 PNP, complementary, short-circuit protected, reverse polarity protected , open collectors | |
| Switching voltage | max. 30 V DC | |
| Switching current | max. 200 mA | |
| Voltage drop | ≤ 2.5 V DC | |
| Switching frequency | 1000 Hz | |
| Response time | 0.5 ms | |
| Timer function | Impulsed time element off-delay 20 ms | |
| Conformity | ||
| Product standard | EN 60947-5-2 | |
| Approvals and certificates | ||
| EAC conformity | TR CU 020/2011 | |
| Protection class | II, rated voltage ≤ 250 V AC with pollution degree 1-2 according to IEC 60664-1 Caution! The protection class 2 is only valid when the terminal compartment is closed. | |
| UL approval | cULus | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | -40 ... 60 °C (-40 ... 140 °F) | |
| Storage temperature | -40 ... 60 °C (-40 ... 140 °F) | |
| Mechanical specifications | ||
| Housing width | 25.8 mm | |
| Housing height | 88 mm | |
| Housing depth | 65.5 mm | |
| Degree of protection | IP67 | |
| Connection | terminal compartment with 8 spring-loaded terminals for wire cross section 0.5 ... 1.5 mm2, insulation stripping 7.5 ... 8.5 mm, M16 x 1.5 cable gland | |
| Material | ||
| Housing | Plastic ABS | |
| Optical face | Plastic pane | |
| Mass | 90 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270902 |
| ECLASS 12.0 | 27270902 |
| ECLASS 11.0 | 27270902 |
| ECLASS 10.0.1 | 27270902 |
| ECLASS 9.0 | 27270902 |
| ECLASS 8.0 | 27270902 |
| ECLASS 5.1 | 27270902 |
| ETIM 9.0 | EC002717 |
| ETIM 8.0 | EC002717 |
| ETIM 7.0 | EC002717 |
| ETIM 6.0 | EC002717 |
| ETIM 5.0 | EC002717 |
| UNSPSC 12.1 | 39121528 |
