Pepperl+Fuchs

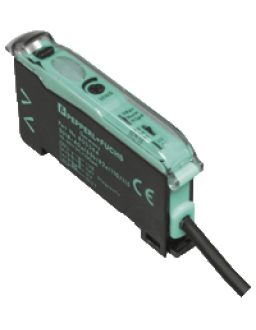

Fiber optic sensor SU18-16/40a/110/115/126a
Fiber optic sensor for glass fiber optics and plastic fiber optics, Basic line for DIN rail installation, Sleek design, 3 response times selectable, High switching frequency, Self diagnosis function Datasheet excerpt: Technical data of SU18-16/40a/110/115/126a Product Description Fiber..
Inductive positioning system PMI810-F110-IU-V1
Analog output 0 V ... 10 V/4 mA ... 20 mA, Measuring range 0 ... 810 mm, Switching element function: analog, current or voltage output, Output polarity: DC, Operating voltage: 18 ... 30 V DC, Type of voltage: DC, Output type: 1 current output: 4 ... 20 mA 1 voltage output: 0 ... 10 V, UL approval: c..

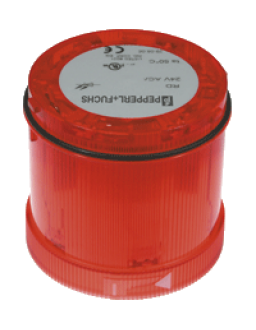

Stack light LED permanent light element VAZ-LED-70MM-RD
Stack light LED permanent light elementt, red Datasheet excerpt: Technical data of VAZ-LED-70MM-RD Product Description Stack light LED permanent light elementt, red General specifications UL File NumberE223176 Colorred Functional safety related parameters MTTFd8700 a Elec..

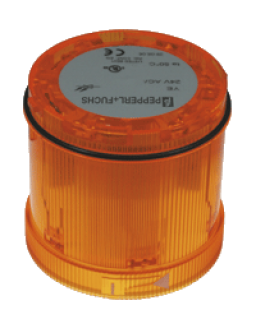

Stack light LED permanent light element VAZ-LED-70MM-YE
Stack light LED permanent light element, yellow Datasheet excerpt: Technical data of VAZ-LED-70MM-YE Product Description Stack light LED permanent light element, yellow General specifications UL File NumberE223176 Coloryellow Functional safety related parameters MTTFd8700 a..

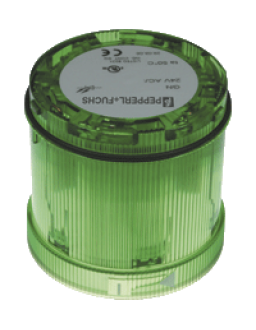

Stack light LED permanent light element VAZ-LED-70MM-GN
Stack light LED permanent light element, green Datasheet excerpt: Technical data of VAZ-LED-70MM-GN Product Description Stack light LED permanent light element, green General specifications UL File NumberE223176 Colorgreen Functional safety related parameters MTTFd8700 a ..

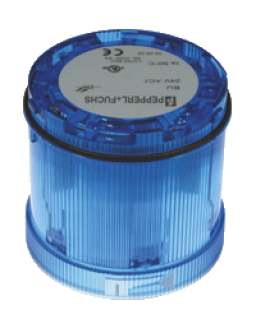

Stack light LED permanent light element VAZ-LED-70MM-BU
Stack light LED permanent light element, blue Datasheet excerpt: Technical data of VAZ-LED-70MM-BU Product Description Stack light LED permanent light element, blue General specifications UL File NumberE223176 Colorblue Functional safety related parameters MTTFd8700 a Ele..

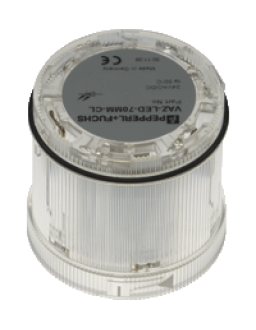

Stack light LED permanent light element VAZ-LED-70MM-CL
Stack light LED permanent light element, clear Datasheet excerpt: Technical data of VAZ-LED-70MM-CL Product Description Stack light LED permanent light element, clear General specifications UL File NumberE223176 Colorclear Functional safety related parameters MTTFd8700 a ..
Double sheet sensor UDC-18GM-400-3E1-Y194142
Ultrasonic system for reliable detection of no, one, or two overlapping sheet materials, preferably papers, No TEACH-IN required, Function indicators visible from all directions, Sensing range: 20 ... 60 mm , optimal distance: 45 mm, Thread mold: M18, Construction type: Cylindrical, thread, Series: ..

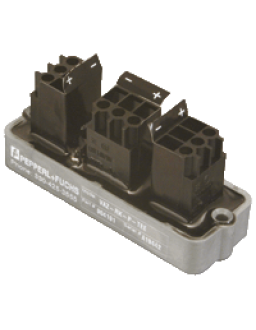

Segment Protector for Cabinet Installation VAZ-RK-P-TEE
AS-Interface one port segment protector Datasheet excerpt: Technical data of VAZ-RK-P-TEE Product Description AS-Interface one port segment protector General specifications DescriptionAS-Interface one port segment protector Indicators/operating means LED OverloadLed red: Out..
Reflector REF-H50x100
Reflector, rectangular 122 mm x 49.5 mm, mounting holes Datasheet excerpt: Technical data of REF-H50x100 Product Description Reflector, rectangular 122 mm x 49.5 mm, mounting holes General specifications Construction typerectangular Ambient conditions Ambient temperature-40 ...
Splice sensor UGB-18GM50-255-2E3
Ultrasonic system for splice detection, Short version, Insensitive to printing, colors, and shining surfaces, Sensing range: 20 ... 60 mm , optimal distance: 45 mm, Thread mold: M18, Construction type: Cylindrical, thread, Series: Ultrasonic splice control, Output type: 2 switch outputs PNP, NC, UL ..
Label sensor ULB-18GM50-255-2E3
Ultrasonic system for detection of labels and carrier materials., Short version, Insensitive to printing, colors, and shining surfaces, Sensing range: 20 ... 60 mm , optimal distance: 45 mm, Thread mold: M18, Construction type: Cylindrical, thread, Series: Ultrasonic label control, Output type: 2 sw..
