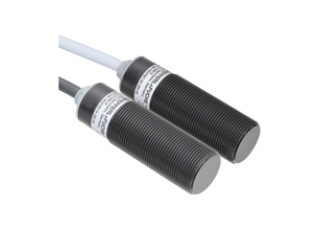

Thru-beam sensor (pair) OBE10M-18GF60-S2PP-0,3M-V1-IR
- Brand:Pepperl+Fuchs
- Product Code: OBE10M-18GF60-S2PP-0,3M-V1-IR
- Availability: Out Of Stock
Thru-beam sensor, M18 threaded housing design, plastic housing, 10 m detection range, infrared light, light/dark on, DC version, 2 push-pull outputs, fixed cable with M12 plug, Sensing range 10 m, With increased sealing, degree of protection IP68, Integrated circuit, Narrow opening angle, suitable for mounting in pairs, Not sensitive to ambient light
Datasheet excerpt: Technical data of OBE10M-18GF60-S2PP-0,3M-V1-IR
| Product Description |
|---|
| Thru-beam sensor, M18 threaded housing design, plastic housing, 10 m detection range, infrared light, light/dark on, DC version, 2 push-pull outputs, fixed cable with M12 plug |
| System components | ||
|---|---|---|
| Emitter | OBE10M-18GF60-S-0,3M-V1-IR | |
| Receiver | OBE10M-18GF60-2PP-0,3M-V1-IR | |
| General specifications | ||
| Effective detection range | 0 ... 10 m | |
| Threshold detection range | 12 m | |
| Light source | IRED | |
| Light type | modulated infrared light , 850 nm | |
| Diameter of the light spot | approx. 1500 mm at a distance of 10 m | |
| Opening angle | Emitter: ± 5 ° ; Receiver: ± 10 ° | |
| Optical face | frontal | |
| Ambient light limit | 10000 Lux | |
| Accessories provided | Mounting nuts | |
| Functional safety related parameters | ||
| MTTFd | 606 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| Operation indicator | Emitter: LED green: Power on | |
| Function indicator | Receiver: LED yellow, lights up when light beam is free, flashes when falling short of the operating reserve ; OFF when light beam is interrupted | |
| Electrical specifications | ||
| Operating voltage | 10 ... 30 V DC | |
| No-load supply current | Emitter: ≤ 17 mA Receiver: ≤ 13 mA | |
| Protection class | Class III | |
| Input | ||
| Test input | emitter deactivation at 0 V | |
| Output | ||
| Switching type | Q - Pin4: NPN normally open / dark-on, PNP normally closed / light-on /Q - Pin2: NPN normally closed / light-on, PNP normally open / dark-on | |
| Signal output | 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected | |
| Switching voltage | max. 30 V DC | |
| Switching current | max. 100 mA | |
| Voltage drop | ≤ 1.5 V DC | |
| Switching frequency | 80 Hz | |
| Response time | 6 ms | |
| Conformity | ||
| Product standard | EN 60947-5-2 | |
| Approvals and certificates | ||
| CE conformity | CE | |
| UKCA conformity | UKCA | |
| UL approval | E87056 , cULus Listed , class 2 power supply , type rating 1 | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) | |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) | |
| Relative humidity | 90 % , noncondensing | |
| Mechanical specifications | ||
| Housing length | 59 mm | |
| Degree of protection | IP67 / IP68 | |
| Connection | fixed cable with 4-pin, M12 x 1 connector Emitter: black ; Receiver: grey | |
| Material | ||
| Housing | PC , black | |
| Optical face | Plastic pane | |
| Cable | ||
| Length | 0.3 m | |
| Mass | approx. 25 g per device | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270901 |
| ECLASS 12.0 | 27270901 |
| ECLASS 11.0 | 27270901 |
| ECLASS 10.0.1 | 27270901 |
| ECLASS 9.0 | 27270901 |
| ECLASS 8.0 | 27270901 |
| ECLASS 5.1 | 27270901 |
| ETIM 9.0 | EC002716 |
| ETIM 8.0 | EC002716 |
| ETIM 7.0 | EC002716 |
| ETIM 6.0 | EC002716 |
| ETIM 5.0 | EC002716 |
| UNSPSC 12.1 | 39121528 |
