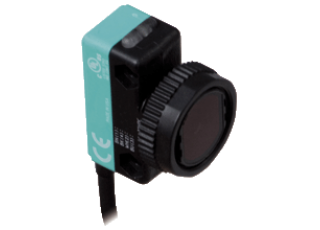

Thru-beam sensor receiver MV17/115b/136
- Brand:Pepperl+Fuchs
- Product Code: MV17/115b/136
- Availability: Out Of Stock
Thru-beam sensor receiver, small design, infrared, light-on/dark-on switching, push-pull output, cable with M12 plug, Receiver, Compact, versatile housing, 360° high visibility LEDs, 4-in-1 output (push-pull), Fixed cable with quick disconnect plug
Datasheet excerpt: Technical data of MV17/115b/136
| Product Description |
|---|
| Thru-beam sensor receiver, small design, infrared, light-on/dark-on switching, push-pull output, cable with M12 plug |
| System components | ||
|---|---|---|
| Emitter | MD17/115b | |
| Receiver | MV17/115b/136 | |
| General specifications | ||
| Effective detection range | 0 ... 15 m | |
| Threshold detection range | 20 m | |
| Reference target | emitter | |
| Light source | IRED | |
| Light type | Infrared LED | |
| Ambient light limit | ≤ 10000 Lux | |
| Indicators/operating means | ||
| Operation indicator | LED green | |
| Function indicator | LED yellow, lights up with receiver lit | |
| Electrical specifications | ||
| Operating voltage | 10 ... 30 V DC , class 2 | |
| Ripple | max. 10 % | |
| No-load supply current | < 25 mA | |
| Operating current | 100 mA max per output | |
| Time delay before availability | ≤ 200 ms | |
| Output | ||
| Switching type | light/dark on | |
| Signal output | 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected | |
| Switching voltage | max. 30 V DC | |
| Switching current | max. 100 mA | |
| Voltage drop | ≤ 2 V DC | |
| Switching frequency | 150 Hz | |
| Response time | ≤ 3 ms | |
| Conformity | ||
| Product standard | EN 60947-5-2 IEC 60947-5-2 | |
| Approvals and certificates | ||
| CE conformity | CE | |
| EAC conformity | TR CU 020/2011 | |
| UL approval | cULus | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | -20 ... 55 °C (-4 ... 131 °F) | |
| Storage temperature | -20 ... 70 °C (-4 ... 158 °F) | |
| Mechanical specifications | ||
| Housing width | 15 mm | |
| Housing height | 34.5 mm | |
| Degree of protection | IP67 | |
| Connection | 150 mm cable with M12 connector, 4-pin | |
| Material | ||
| Housing | ABS | |
| Optical face | Acrylic | |
| Mass | 23 g | |
