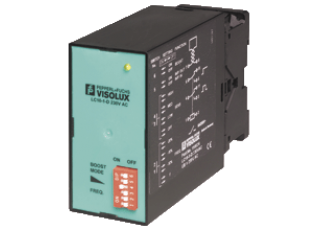

Loop detector LC10-1-D 24 VAC
- Brand:Pepperl+Fuchs
- Product Code: LC10-1-D 24 VAC
- Availability: Out Of Stock
Sensor system for vehicle detection, Complete control interface for inductive loops laid beneath the surface, Reliable detection with long service life, Various operating modes available, Boost function for increasing sensitivity, Operating voltage: 24 V AC ( galvanically isolated from loop )
Datasheet excerpt: Technical data of LC10-1-D 24 VAC
| Product Description |
|---|
| Universal sensor system for detecting vehicles |
| General specifications | ||
|---|---|---|
| Marking | CE | |
| Operating mode | Pulsed and continuous signal | |
| Functional safety related parameters | ||
| MTTFd | 306 a | |
| Mission Time (TM) | 20 a | |
| Indicators/operating means | ||
| Control elements | DIP-switch | |
| Switching state | LED | |
| Electrical specifications | ||
| Operating voltage | 24 V AC ( galvanically isolated from loop ) | |
| Ripple | -15 %/+10 % | |
| Power consumption | 1.6 VA | |
| Calibration time | 2 s | |
| Loop inductivity | 100 ... 1000 µH | |
| Loop frequency | 20 ... 120 kHz | |
| Input | ||
| Number of channels | 1 | |
| Output | ||
| Output type | relay | |
| Switching voltage | 250 V AC | |
| Switching current | 6 A | |
| Pulse length | period or 800 ms Pulse | |
| Response time | 100 ms | |
| Ambient conditions | ||
| Ambient temperature | -20 ... 70 °C (-4 ... 158 °F) | |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP30 | |
| Connection | Plug socket ; 11-pin Terminal connection ≤ 1.5 mm2 | |
