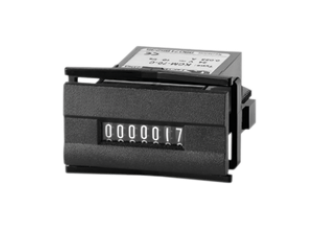

Counter KCM-70-C
- Brand:Pepperl+Fuchs
- Product Code: KCM-70-C
- Availability: Out Of Stock
Electromechanical summator, 7 decade devices, Counter frequency 10 Hz, Without reset, Power supply 24 V DC, Operating voltage: 24 V DC, Dimensions: 48 mm x 24 mm x 54 mm
Datasheet excerpt: Technical data of KCM-70-C
| Functional safety related parameters | ||
|---|---|---|
| MTTFd | 4600 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| Type | digital display | |
| Number of digits | 7 | |
| Display value | digit height 4 mm | |
| Electrical specifications | ||
| Operating voltage | 24 V DC | |
| Power consumption | 0.6 W | |
| Input | ||
| Pulse length/pulse interval | 50 ms / 50 ms | |
| Counting frequency | 10 Hz | |
| Ambient conditions | ||
| Ambient temperature | -10 ... 50 °C (14 ... 122 °F) | |
| Storage temperature | -40 ... 90 °C (-40 ... 194 °F) | |
| Relative humidity | ≤ 80 % (noncondensing) | |
| Mechanical specifications | ||
| Connection | flexible leads AWG 22 150 mm long | |
| Mass | 60 g | |
| Dimensions | 48 mm x 24 mm x 54 mm | |
| Mounting | latch fastener | |
| Life span | > 50 x 106 pulses | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27210301 |
| ECLASS 12.0 | 27210301 |
| ECLASS 11.0 | 27210301 |
| ECLASS 10.0.1 | 27210301 |
| ECLASS 9.0 | 27210301 |
| ECLASS 8.0 | 27210301 |
| ECLASS 5.1 | 27210301 |
| ETIM 9.0 | EC002300 |
| ETIM 8.0 | EC002300 |
| ETIM 7.0 | EC002300 |
| ETIM 6.0 | EC002300 |
| ETIM 5.0 | EC000677 |
| UNSPSC 12.1 | 41111902 |
