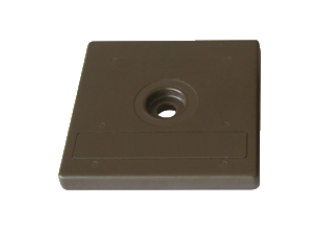

RFID Transponder IQC21-50F-T10

Get information

Data carrier

Datasheet excerpt: Technical data of IQC21-50F-T10

Product Description
Data carrier

General specifications
Operating frequency		13.56 MHz
Transfer rate		26 kBit/s
Memory
Chip Type		I-CODE SLI (NXP)
EEPROM		896 Bit
UID		64 Bit
Memory organization		4 bytes/block
Read cycles		unlimited
Write cycles		> 100000
Data retention period		10 years at 55 °C (131 °F)
Directive conformity
Radio equipment
	Directive 2014/53/EU	EN 300330
RoHS
	Directive 2011/65/EU (RoHS)	IEC/EN 63000
Standard conformity
Degree of protection		EN 60529
RFID		ISO/IEC 15693-1 ISO/IEC 15693-2 ISO/IEC 15693-3 ISO/IEC 18000-3
Ambient conditions
Ambient temperature		-40 ... 85 °C (-40 ... 185 °F)
Storage temperature		-40 ... 220 °C (-40 ... 428 °F) 220 °C (493 K) for 1000 hours or 1500 cycles of 30 min
Climatic conditions		100 % non-condensing
Mechanical specifications
Housing length		51.5 mm
Housing width		51.5 mm
Housing height		6.4 mm
Degree of protection		IP68
Material
	Housing	PPS
Installation
	In air	yes
Mass		25 g
Construction type		Rectangular type
