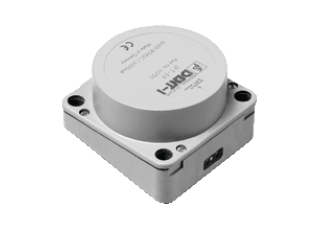

Read/write station IPT1-FP

Get information

LF R/W system, fully assembled as configuration and test station

Datasheet excerpt: Technical data of IPT1-FP

Product Description
LF R/W system, fully assembled as configuration and test station

General specifications
Operating frequency		125 kHz
Transfer rate		2 kBit/s
Operating distance		maximum: 100 mm
UL File Number		E87056
Indicators/operating means
LED green		Power on
LED yellow		IPC detected
LED red		bus fault (when using fieldbus interfaces)
Electrical specifications
Rated operating voltage		20 ... 30 V DC , ripple 10 %_SS , PELV
Power consumption		max. 5 W , in connection with the base
Galvanic isolation
	Operating voltage/interface	functional insulation acc. to DIN EN 50178, rated insulation voltage 50 V_eff
Mag. Field strength		< 27.3 dBµA/m at 10 m
Interface
Physical		Interface type depends on base used
Directive conformity
Radio equipment
	Directive 2014/53/EU	EN 301489-1 EN 300330 EN 62368-1
RoHS
	Directive 2011/65/EU (RoHS)	IEC/EN 63000
Standard conformity
RFID		ISO/IEC 18000-2
Ambient conditions
Ambient temperature		-25 ... 70 °C (-13 ... 158 °F)
Storage temperature		-40 ... 85 °C (-40 ... 185 °F)
Mechanical specifications
Degree of protection		IP67 according to EN 60529, with base
Material
	Housing	PBT
