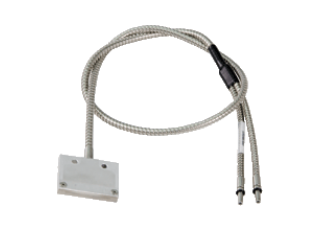

Glass fiber optic FE-BRL7S-3
- Brand:Pepperl+Fuchs
- Product Code: FE-BRL7S-3
- Availability: Out Of Stock
Glass fiber optic - diffuse, Sensing head: Rectangular/ array with straight optics, Sheathing: Stainless steel, Sensor series: MP, MHP, Series 61, Fiber optic length: 3 ft.
Datasheet excerpt: Technical data of FE-BRL7S-3
| Product Description |
|---|
| Glass fiber optic - diffuse |
| General specifications | ||
|---|---|---|
| Sensor range | MHP-FR: 46 mm MHP-F: 104 mm RL(K)61-LL: 205 mm MPG6HD: 230 mm | |
| Fiber optic length | 3 ft (.914 m) | |
| End piece | Optical axis: Straight Type: Rectangular / array | |
| Bending radius | min. 25 mm | |
| Fiber bundle diameter | 0.01" x 1.5" (0.254 x 38.099 mm) | |
| Ambient conditions | ||
| Ambient temperature | -40 ... 232 °C (-40 ... 449.6 °F) | |
| Mechanical specifications | ||
| Material | ||
| Optical face | glass | |
| Sheathing | Stainless steel 1.4305 / AISI 303 | |
| Core | glass | |
| End piece | Aluminum | |
| Adapter | Stainless steel, 4.7 mm diameter | |
| Fiber optic amplifiers | ||
| Device series | MP, MHP, Series 61 | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27273606 |
| ECLASS 12.0 | 27273606 |
| ECLASS 11.0 | 27273606 |
| ECLASS 10.0.1 | 27273606 |
| ECLASS 9.0 | 27273606 |
| ECLASS 8.0 | 27279208 |
| ECLASS 5.1 | 27279208 |
| ETIM 9.0 | EC001476 |
| ETIM 8.0 | EC001476 |
| ETIM 7.0 | EC002651 |
| ETIM 6.0 | EC001476 |
| ETIM 5.0 | EC002651 |
| UNSPSC 12.1 | 39121528 |
