Parker 837PU-10-RED-RL Hydraulic hose Push-Lok® DN16 mm

Parker 837PU-10-RED-RL Hydraulic hose Push-Lok® DN16 mm

  • Brand:Parker
  • Product Code: 837PU-10-RED-RL
  • Availability: Out Of Stock
Parker 837PU-10-RED-RL Hydraulic hose Push-Lok® DN16 mm

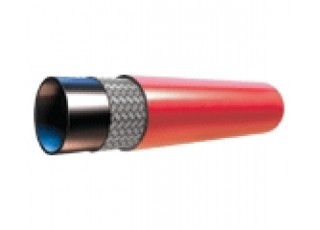

Low Pressure Hose Push-Lok® 837PU

Construction: Synthetic rubber tube - One fi bre braid reinforcement - High performance polyurethane cover. The hose is free of wetting disturbing substances eg: silicone.

Recommended fluids: Air, dry air, water, water-oil emulsions and water-glycol emulsions. (Mineral based hydraulic and lubricating oils with chemical and thermal (70°C) restriction).

Working temperature: From -40°C to +100°C. (Air max. +70°C, Water max. +85°C).

Fittings series: 82 series.

Applications: All Markets: For highly demanding applications. For energy chain systems. Robot and Automotive market: For hose bundle systems.

Material:

PN: 16 bar

More information:
Burst Pressure min.:
64 bar
Working pressure max. bar:
16 bar
Working pressure max. PSI:
225 PSI
Bend Radius min.:
90 mm
DN:
16 mm
Outer diameter:
23 mm
Inner diameter 1:
15,9 mm
Weight:
0,2776 kg
Series:
837PU-Plus
Temp. max.:
100 °C
Temp. min.:
-40 °C
Customs tariff number:
40093100
Country of origin:
IT
