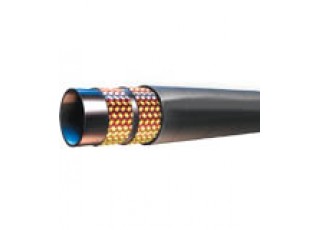

Parker 471TC-10 Hydraulic hose DN 16 mm 250 bar

Parker 471TC-10 Hydraulic hose DN 16 mm 250 bar

  • Brand:Parker
  • Product Code: 471TC-10
  • Availability: Out Of Stock
Parker 471TC-10 Hydraulic hose DN 16 mm 250 bar

No-Skive DIN EN 857 2SC – ISO 11237 Type 2SC • No-Skive hose construction – Compact design • 472TC: Nitrile (NBR) inner tube – extended fluid compatibility • Reduced bend radii • Highly abrasion resistant • MSHA approved • Hose is suitable for temporary immersion in mineral oil up to 70 °C with frequent inspections

Material:

PN: 250 bar

More information:
Burst Pressure min.:
1000 bar (14600 PSI)
Working pressure max. bar:
250 bar
Working pressure max. PSI:
3600 PSI
Bend Radius min.:
100 mm
DN:
16 mm
Outer diameter:
24 mm
Inner diameter 1:
15,9 mm
Weight:
0,66 kg
Norm:
EN857/2SC SAE100R16
Series:
471TC
Temp. max.:
100 °C
Temp. min.:
-40 °C
Wall thickness:
8 mm
Customs tariff number:
40092100
Country of origin:
XX
