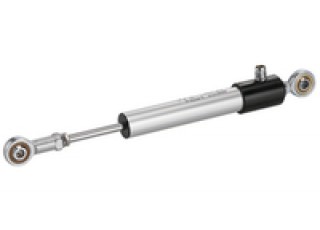

TX20200-716-002-101 Position transducer 200 mm 8 kΩ

TX20200-716-002-101 Position transducer 200 mm 8 kΩ

  • Brand:Novotechnik
  • Product Code: TX20200-716-002-101
  • Availability: Out Of Stock
Position transducer, Dimensions L x ø: 274 x 20 mm, Dimensions ø x L: 20 x 274 mm, Operating temperature: -40...+85 °C, Resistance technical notation: 8K, Operating current, slider circuit: 1 µA, Connection: Plug M8, 3-Pin, Output: Voltage divider, Protection rating: IP 67, Service life: 50 x 106 movements, Operating voltage: max. 42 V, Resistance: 8 kΩ, Stroke length, electric: 200 mm
More information:
Bruttogewicht:
0.186 kg
Nettogewicht:
0.186 kg
Höhe:
20 mm
Breite:
100 mm
Tiefe:
530 mm
Ursprungsland:
DE
