KTR Kupplungstechnik GmbH

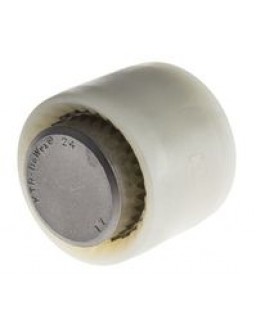

KTR Barrel Gear Coupling Hub BOWEXM24-COMPLETE
Outside Diameter = 36mmTorque Rating = 60NmMisalignment - Angular = ±0.6 ° @ 3000 rpm, ±0.9 ° @ 1500 rpmMisalignment - Parallel = ±0.23 mm @ 3000 rpm, ±0.35 mm @ 1500 rpmMaximum Speed = 10600rpmBoWex® couplings with attachments that can generate heat, static charge and sparks are ;u not ;/u permitt..

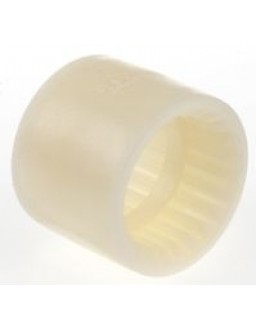

KTR Barrel Gear Coupling Sleeve BOWEXM32-SLEEVE-PB
Outside Diameter = 75mmLength = 48mmSeries = Bowex®Each coupling comprises of three parts (sold separately) two coupling hubs and a gear coupling sleeve. BoWex M Tooth Gear Coupling Sleeve. BoWex® Curved-tooth gear couplings® are flexible shaft connections for a positive torque transmission and used..
KTR Barrel Gear Coupling Hub BOWEXM14-COMPLETE
Outside Diameter = 25mmTorque Rating = 30NmMisalignment - Angular = ±0.7 ° @ 3000 rpm, ±1 ° @ 1500 rpmMisalignment - Parallel = ±0.2 mm @ 3000 rpm, ±0.3 mm @ 1500 rpmMaximum Speed = 14000rpmBoWex® couplings with attachments that can generate heat, static charge and sparks are ;u not ;/u permitted f..
KTR Barrel Gear Coupling Hub BOWEXM28-COMPLETE
Bore = 28mmOutside Diameter = 44mmTorque Rating = 135NmMisalignment - Angular = ±0.6°@3000 rpm, ±0.9°@1500 rpmMisalignment - Parallel = ±0.23mm@3000 rpm, ±0.35mm@1500 rpmMaximum Speed = 8500rpmBoWex® couplings with attachments that can generate heat, static charge and sparks are ;u not ;/u permitte..
KTR Barrel Gear Coupling Hub BOWEXM19-COMPLETE
Outside Diameter = 32mmTorque Rating = 48NmMisalignment - Angular = ±0.7 ° @ 3000 rpm, ±1 ° @ 1500 rpmMisalignment - Parallel = ±0.2 mm @ 3000 rpm, ±0.3 mm @ 1500 rpmMaximum Speed = 11800rpmBoWex® couplings with attachments that can generate heat, static charge and sparks are ;u not ;/u permitted f..
KTR Barrel Gear Coupling Hub BOWEXM38-COMPLETE
Bore = 38mmOutside Diameter = 58mmTorque Rating = 240NmMisalignment - Angular = ±0.6°@3000 rpm, ±0.9°@1500 rpmMisalignment - Parallel = ±0.25mm@3000 rpm, ±0.4mm@1500 rpmMaximum Speed = 6700rpmBoWex® couplings with attachments that can generate heat, static charge and sparks are ;u not ;/u permitted..
KTR Barrel Gear Coupling Hub BOWEXM32-COMPLETE
Outside Diameter = 50mmTorque Rating = 180NmMisalignment - Angular = ±0.6 ° @ 3000 rpm, ±0.9 ° @ 1500 rpmMisalignment - Parallel = ±0.23 mm @ 3000 rpm, ±0.35 mm @ 1500 rpmMaximum Speed = 7500rpmBoWex® couplings with attachments that can generate heat, static charge and sparks are ;u not ;/u permitt..
KTR Barrel Gear Coupling Hub BOWEXM48-COMPLETE
Outside Diameter = 68mmTorque Rating = 420NmMisalignment - Angular = ±0.6 ° @ 3000 rpm, ±0.9 ° @ 1500 rpmMisalignment - Parallel = ±0.25 mm @ 3000 rpm, ±0.4 mm @ 1500 rpmMaximum Speed = 5600rpmBoWex® couplings with attachments that can generate heat, static charge and sparks are ;u not ;/u permitte..
KTR Barrel Gear Coupling Hub BOWEXM42-COMPLETE
Outside Diameter = 65mmTorque Rating = 300NmMisalignment - Angular = ±0.6 ° @ 3000 rpm, ±0.9 ° @ 1500 rpmMisalignment - Parallel = ±0.25 mm @ 3000 rpm, ±0.4 mm @ 1500 rpmMaximum Speed = 6000rpmBoWex® couplings with attachments that can generate heat, static charge and sparks are ;u not ;/u permitte..
KTR Barrel Gear Coupling Hub BOWEXM65-COMPLETE
Bore = 65mmOutside Diameter = 96mmTorque Rating = 1140NmMisalignment - Angular = ±0.5°@3000 rpm, ±0.7°@1500 rpmMisalignment - Parallel = ±0.28mm@3000 rpm, ±0.45mm@1500 rpmMaximum Speed = 4000rpmBoWex® couplings with attachments that can generate heat, static charge and sparks are ;u not ;/u permitt..
