R910920847 A A10VSO100 DFR1/31R-VPA12N00

R910920847 A A10VSO100 DFR1/31R-VPA12N00

  • Brand:Bosch Rexroth
  • Product Code: R910920847
  • Availability: Out Of Stock

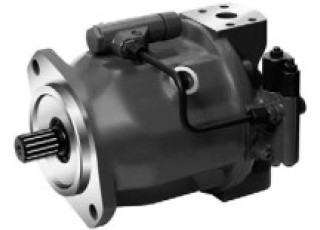

Axial Piston Variable Pump A10V(S)O Series 31
  • Variable pump with axial piston rotary group in swashplate design for hydrostatic drives in open circuit.
  • The flow is proportional to the drive speed and displacement.
  • The flow can be infinitely varied by adjusting the swashplate angle.
  • 2 drain ports
  • Excellent suction performance
  • Low noise level
  • Long service life
  • Favorable power/weight ratio
  • Versatile controller range
  • Short control time
  • The through drive is suitable for adding gear pumps and axial piston pumps up to the same size, i.e., 100% through drive.

Tecnical Details

  • Axial piston unit: Swash plate design, variable, nominal pressure 280 bar, maximum pressure 350 bar
  • Operating Mode: Pump, open circuit
  • Size: 100
  • Direction of rotation (viewed on shaft end): clockwise
  • Seals: FKM
  • Drive shaft: Parallel keyed shaft DIN 6885 limited suitability for through drive
