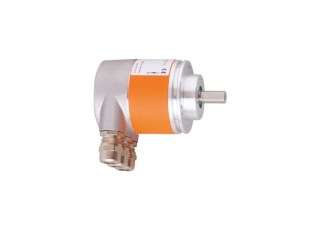

RN3001 - efector400-RMK0013-E24/E

RN3001 - efector400-RMK0013-E24/E

  • Brand:IFM ELECTRONIC
  • Product Code: RN3001
  • Availability: Out Of Stock
  • For precise position, speed, angular and linear measurement
  • Direct output of the values via PROFIBUS interface
  • Robust housing for use in harsh industrial environments
  • High shock and vibration resistance
  • Easy wiring and programming
Product characteristics
Resolution 8192 steps; 13 bit
Communication interface PROFIBUS DP
Shaft design solid shaft
Shaft diameter [mm] 10
Application
Function principle absolute
Revolution type singleturn
Electrical data
Operating voltage [V] 10...30 DC
Current consumption [mA] 100; ((24 V))
Reverse polarity protection yes
Outputs
Code binary
Measuring/setting range
Resolution 8192 steps; 13 bit
Software / programming
Parameter setting options counting direction of the code values; Resolution; zero point; limit switches HI and LO; motion indicator; separation multiturn/singleturn
Diagnostic functions alarms; warnings; status; serial number of the encoder
Addressing address selector switch; 0...126
Interfaces
Communication interface PROFIBUS DP
PROFIBUS DP
Transmission standard DPV2
Operating conditions
Ambient temperature [°C] -40...85
Max. relative air humidity [%] 98
Protection IP 67; (on the housing: IP 67; on the shaft: IP 67)
Tests / approvals
Shock resistance
100 g (6 ms)
Vibration resistance
10 g (10...2000 Hz)
MTTF [years] 13
Mechanical data
Weight [g] 553.5
Dimensions [mm] Ø 58 / L = 99
Materials aluminium
Max. revolution, mechanical [U/min] 12000
Shaft design solid shaft
Shaft diameter [mm] 10
Shaft material
steel (1.4104)
Max. shaft load axial (at the shaft end) [N] 40
Max. shaft load radial (at the shaft end) [N] 110
Fixing flange clamping flange
Electrical connection
terminal strip in the terminal chamber:
