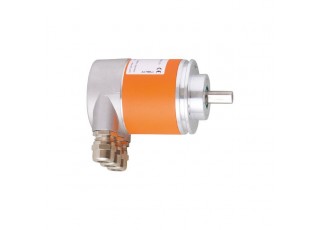

RM7012 - efector400-RMK0025-C24/E

RM7012 - efector400-RMK0025-C24/E

  • Brand:IFM ELECTRONIC
  • Product Code: RM7012
  • Availability: Out Of Stock
  • For precise position, speed, angular and linear measurement
  • Direct output of the values via CANopen interface
  • Robust housing for use in harsh industrial environments
  • High shock and vibration resistance
  • Easy wiring and programming
Product characteristics
Resolution 8192 steps; 4096 revolutions; 25 bit
Communication interface CAN
Shaft design solid shaft
Shaft diameter [mm] 10
Application
Function principle absolute
Revolution type multiturn
Electrical data
Operating voltage [V] 10...30 DC
Current consumption [mA] 230; ((10 V DC); 100 (24 V DC))
Reverse polarity protection yes
Outputs
Code binary
Measuring/setting range
Resolution 8192 steps; 4096 revolutions; 25 bit
Software / programming
Parameter setting options CAN parameter; scaling; preset; Baud rate; direction of rotation; Node ID
Addressing address selector switch; 0...126
Interfaces
Communication interface CAN
CAN
Protocol CANopen
Factory settings
Baud rate: 125 kBit/s
node ID: 32
Version DSP - 406 V3.1; DS 301 V4.02; DS 306 V2.0
Operating conditions
Ambient temperature [°C] -40...85
Max. relative air humidity [%] 98
Protection IP 65; (on the housing: IP 65; on the shaft: IP 64)
Tests / approvals
Shock resistance
100 g (6 ms)
Vibration resistance
10 g (10...1000 Hz)
MTTF [years] 13
Mechanical data
Weight [g] 592.5
Dimensions [mm] Ø 58 / L = 110
Materials aluminium
Max. revolution, mechanical [U/min] 6000
Shaft design solid shaft
Shaft diameter [mm] 10
Shaft material
steel (1.4104)
Max. shaft load axial (at the shaft end) [N] 40
Max. shaft load radial (at the shaft end) [N] 110
Fixing flange clamping flange
Displays / operating elements
Display
Preoperational Mode LED, green flashing
Operational Mode LED, green
error message LED, red flashing
Electrical connection
terminal strip in the terminal chamber:
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — RM7012-00 — 13.11.2013 —
