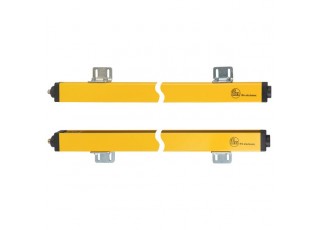

OY807S - efector200-OYA1060-14-4-05-P-1-B

OY807S - efector200-OYA1060-14-4-05-P-1-B

  • Brand:IFM ELECTRONIC
  • Product Code: OY807S
  • Availability: Out Of Stock
  • With floating blanking
  • Reliable protection of hazardous areas and gates
  • For the safe material feed on presses in the metal-working and wood-working industries
  • Complies with the requirements of type 4 to IEC 61496
  • Wide range selectable on the unit
Product characteristics
Type of light infrared light
Electrical design PNP
Protection IP 65
Application
Protective function access prevention finger protection
Electrical data
Operating voltage tolerance [%] 20
Operating voltage [V] 24 DC
Protection class III
Reverse polarity protection yes
Power-on delay time [s] < 18
Type of light infrared light
Wave length [nm] 950
Receiver
Current consumption [mA] 125
Transmitter
Current consumption [mA] 83
Outputs
Electrical design PNP
Number of OSSD outputs 2
Max. current load per OSSD output [mA] 500; (24 V)
Short-circuit protection yes
Detection zone
Protected area height [mm] 1060
Resolution (detection capacity d) [mm] 14
Protection area width (low light intensity) [m] 0...3
Protection area width (high light intensity) [m] 0...5
Floating blanking yes
Response times
Response time [ms] 17
Operating conditions
Applications class C to EN 60654-1 weatherproof application
Ambient temperature [°C] 0...55
Max. relative air humidity [%] 95
Protection IP 65
Tests / approvals
EMC
IEC 61496-1
Shock resistance
IEC 61496-1
Vibration resistance
IEC 61496-1
Safety classification
ESPE type (IEC 61496-1) 4
Complies with the requirements
ISO 13849-1: 2015 category 4, PL e
IEC 61508 SIL 3
IEC 62061 SIL 3
Mission time TM [h] 175200
PFH [1/h] 1,9E-08
Mechanical data
Weight [g] 5475
Dimensions [mm] 1161 x 35 x 45
Materials housing: aluminium; front pane: PC
Length L [mm] 1161
Displays / operating elements
Display
transmitter 3 x LED
transmitter 7-segment LCD display
receiver 3 x LED
receiver 7-segment LCD display
Accessories
Items supplied
mounting bracket: 4
slot nuts: 4
screws
Remarks
Pack quantity 1 pcs.
Electrical connection - receiver
Connection Connector: 1 x M12; coding: A; Maximum cable length: 100 m; for wire cross-section 0.34 mm²
Electrical connection - transmitter
Connection Connector: 1 x M12; coding: A
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — EN-GB — OY807S — 14.03.2022 —
