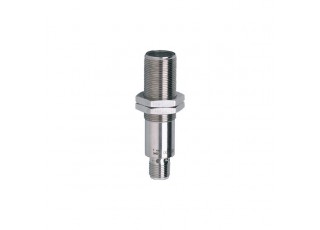

OGS500 - efector200-OGS-OOKG/US100

OGS500 - efector200-OGS-OOKG/US100

  • Brand:IFM ELECTRONIC
  • Product Code: OGS500
  • Availability: Out Of Stock
  • Robust stainless steel housing for use in harsh industrial environments
  • Very long range
  • Ready for operation immediately thanks to fixed setting
  • Wide range of fixing components for quick and easy mounting
  • Excellent price/performance ratio
Product characteristics
Type of light red light
Housing threaded type
Application
Function principle Through-beam sensor
Electrical data
Operating voltage [V] 10...36 DC
Current consumption [mA] 20
Protection class II
Reverse polarity protection yes
Type of light red light
Wave length [nm] 624
Detection zone
Transmitter / receiver transmitter
Range [m] < 25
Range adjustable no
Max. light spot diameter [mm] 1000
Light spot dimensions refer to at maximum range
Operating conditions
Ambient temperature [°C] -25...80
Protection IP 67
Tests / approvals
EMC
EN 60947-5-2
MTTF [years] 629
Mechanical data
Weight [g] 62.3
Housing threaded type
Dimensions [mm] M18 x 1 / L = 72
Thread designation M18 x 1
Materials stainless steel (1.4404 / 316L); PA; EPDM
Lens material
PMMA
Displays / operating elements
Display
operation 1 x LED, green
Accessories
Items supplied
lock nuts: 2
Remarks
Remarks
operating voltage "supply class 2" according to cULus
Pack quantity 1 pcs.
Electrical connection
Connection Connector: 1 x M12; coding: A
Diagrams and graphs
excess gain graph
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OGS500-00 — 13.04.2023 —
