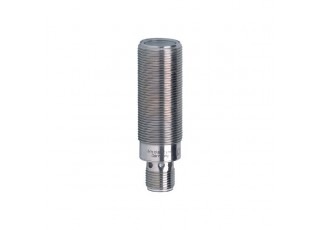

OGE200 - efector200-OGE-DPKG/US100

OGE200 - efector200-OGE-DPKG/US100

  • Brand:IFM ELECTRONIC
  • Product Code: OGE200
  • Availability: Out Of Stock
  • Robust stainless steel housing for use in harsh industrial environments
  • Very long range
  • Ready for operation immediately thanks to fixed setting
  • Wide range of fixing components for quick and easy mounting
  • Excellent price/performance ratio
Product characteristics
Type of light red light
Housing threaded type
Application
Function principle Through-beam sensor
Electrical data
Operating voltage [V] 10...36 DC
Current consumption [mA] 10
Protection class II
Reverse polarity protection yes
Type of light red light
Wave length [nm] 624
Outputs
Electrical design PNP
Output function dark-on mode
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 200
Switching frequency DC [Hz] 1000
Short-circuit protection yes
Type of short-circuit protection pulsed
Overload protection yes
Detection zone
Transmitter / receiver receiver
Range [m] < 20
Range adjustable no
Operating conditions
Ambient temperature [°C] -25...60
Protection IP 67
Tests / approvals
EMC
EN 60947-5-2
MTTF [years] 1112
Mechanical data
Weight [g] 50.1
Housing threaded type
Dimensions [mm] M18 x 1 / L = 60
Thread designation M18 x 1
Materials housing: stainless steel (1.4404 / 316L)
Lens material
PMMA
Displays / operating elements
Display
switching status 1 x LED, yellow
Accessories
Items supplied
lock nuts: 2
Remarks
Remarks
operating voltage "supply class 2" according to cULus
Pack quantity 1 pcs.
Electrical connection
Connection Connector: 1 x M12; coding: A
Diagrams and graphs
excess gain graph
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OGE200-00 — 13.04.2023 —
