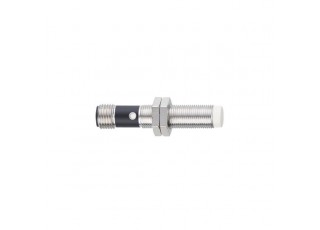

IF0309 - efector100-IFK2004-AROA/SL/LS100-AK RT

IF0309 - efector100-IFK2004-AROA/SL/LS100-AK RT

  • Brand:IFM ELECTRONIC
  • Product Code: IF0309
  • Availability: Out Of Stock
  • With combined AC/DC output stage
  • Large operating voltage range
  • Two-wire technology
  • Robust metal housing for use in harsh industrial environments
  • For a precise position detection on machines
Product characteristics
Output function normally open
Sensing range [mm] 4
Housing threaded type
Dimensions [mm] M12 x 1
Electrical data
Frequency AC [Hz] 47...63
Operating voltage [V] 20...140 AC / 10...140 DC
Protection class I
Reverse polarity protection no
Outputs
Output function normally open
Max. voltage drop switching output DC [V] 5
Max. voltage drop switching output AC [V] 5
Minimum load current [mA] 5
Max. leakage current [mA] 0.8
Permanent current rating of switching output AC [mA] 200
Permanent current rating of switching output DC [mA] 200
Short-time current rating of switching output [mA] 900; (20 ms / 0,5 Hz)
Switching frequency AC [Hz] 25
Switching frequency DC [Hz] 90
Short-circuit proof no
Overload protection no
Detection zone
Sensing range [mm] 4
Real sensing range Sr [mm] 4 ± 10 %
Operating distance [mm] 0...3.25
Accuracy / deviations
Correction factor steel: 1 / stainless steel: 0.7 / brass: 0.45 / aluminium: 0.4 / copper: 0.33
Hysteresis [% of Sr] 3...15
Switch point drift [% of Sr] -10...10
Operating conditions
Ambient temperature [°C] -25...70
Protection IP 67
Tests / approvals
EMC
EN 61000-4-2 ESD 4 kV CD / 8 kV AD
EN61000-4-3 HF radiated 3 V/m
EN 61000-4-4 Burst 2 kV
EN 6100-4-6 HF conducted 3 V
EN 55011 class B
MTTF [years] 1257
UL approval
Ta 0...40 °C
Enclosure type Type 1
power supply Hazardous voltage
File number UL E174191
Mechanical data
Weight [g] 28.2
Housing threaded type
Mounting non-flush mountable
Dimensions [mm] M12 x 1
Thread designation M12 x 1
Materials housing: brass white bronze coated; sensing face: PBT natural; LED window: PBT natural; lock nuts: brass white bronze coated
Tightening torque [Nm] A = 4 mm: 3,5 Nm; B: 5 Nm
Length [mm] 62
Displays / operating elements
Display
switching status 1 x LED, red
Electrical connection
Required protection miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting
Accessories
Items supplied
lock nuts: 2
Remarks
Remarks
Recommendation: Check the safe functioning of the unit after a short circuit.
Pack quantity 1 pcs.
Electrical connection - plug
Connector: 1 x 1/2"; coding: C
Diagrams and graphs
Installation
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — IF0309-02 — 13.04.2023 —
