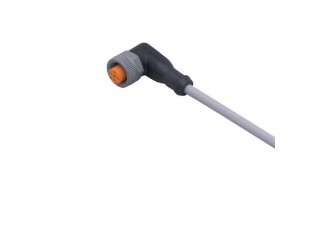

EVW061 - ecomat400-ADOAH043SCS0005T04
- Brand:IFM ELECTRONIC
- Product Code: EVW061
- Availability: Out Of Stock
- Weld-slag resistant PUR cable with drag chain suitability
- Nut with special weld-slag resistant coating
- High protection rating for the requirements of harsh industrial environments
- Vibration and shock resistant thanks to coupling ring with locking mechanism
- LEDs clearly visible even under bright lighting
Application
| Special feature | Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability |
|---|---|
| Application | welding applications |
| Free from silicone | yes |
Electrical data
| Operating voltage [V] | 10...36 DC |
|---|---|
| Protection class | II |
| Max. current load total [A] | 4 |
| Overall current rating (UL) [A] | 3 |
Outputs
| Electrical design | PNP |
|---|
Operating conditions
| Ambient temperature [°C] | -25...90 | |
|---|---|---|
| Note on ambient temperature |
| |
| Ambient temperature (moving) [°C] | -25...90 | |
| Note on ambient temperature (moving) |
| |
| Protection | IP 65; IP 67; IP 68; IP 69K |
Mechanical data
| Weight [g] | 191.5 | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Dimensions [mm] | 26.5 x 15.5 x 36.5 | ||||||||
| Materials | housing: TPU black transparent; Sealing: FKM | ||||||||
| Material nut | brass, anti-spatter | ||||||||
| Drag chain suitability | yes | ||||||||
| Drag chain suitability |
|
Displays / operating elements
| Display |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable: 5 m, PUR, Halogen-free, grey, Ø 4.9 mm; not irradiated (can be recycled); resistant to welding sparks; 4 x 0.34 mm² (42 x Ø 0.1 mm ) |
Electrical connection - socket
| Connection | Connector: 1 x M12, angled; coding: A; Locking: brass, anti-spatter; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm |
|---|
