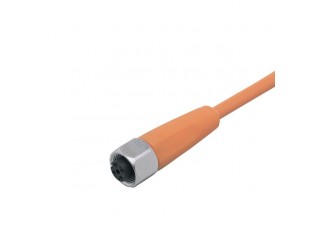

EVT397 - ecomat400-ADOGH040VAS0002L04
- Brand:IFM ELECTRONIC
- Product Code: EVT397
- Availability: Out Of Stock
- For use in hygienic and wet areas in the food industry
- Permanent, reliable sealing even when mounted without tools
- Large operating temperature range and high protection rating
- Vibration and shock resistant thanks to coupling ring with locking mechanism
- Continuously high EMC interference protection against noise field interference
Application
| Special feature | Free from silicone; Gold-plated contacts; Screened cable; Drag chain suitability |
|---|---|
| Application | hygienic and wet areas in the food industry |
| Free from silicone | yes |
Electrical data
| Operating voltage [V] | < 50 AC / < 60 DC |
|---|---|
| Protection class | III |
| Max. current load total [A] | 4 |
| Overall current rating (UL) [A] | 3 |
Operating conditions
| Ambient temperature [°C] | -25...100 | |
|---|---|---|
| Note on ambient temperature |
| |
| Ambient temperature (moving) [°C] | 5...100 | |
| Note on ambient temperature (moving) |
| |
| Protection | IP 65; IP 67; IP 68; IP 69K |
Mechanical data
| Weight [g] | 113.2 | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Dimensions [mm] | 15.5 x 15.5 x 45 | ||||||||
| Materials | housing: PVC orange; Sealing: EPDM | ||||||||
| Material nut | stainless steel (1.4404 / 316L) | ||||||||
| Drag chain suitability | yes | ||||||||
| Drag chain suitability |
|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable: 2 m, PVC, orange, Ø 5.2 mm, shielded; 4 x 0.34 mm² (42 x Ø 0.1 mm ) |
Electrical connection - socket
| Connection | Connector: 1 x M12, straight; coding: A; Locking: stainless steel (1.4404 / 316L); Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm; Shielded connection cable: screen connected |
|---|
Diagrams and graphs
| Shielding characteristics |
|
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EVT397-00 — 05.11.2020 —
