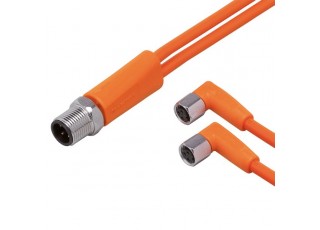

EVT340 - ecomat400-YDOAF030VAS00,6E03STGH040VAS
- Brand:IFM ELECTRONIC
- Product Code: EVT340
- Availability: Out Of Stock
- For use in hygienic and wet areas in the food industry
- Permanent, reliable sealing even when mounted without tools
- Large operating temperature range and high protection rating
- Vibration and shock resistant thanks to coupling ring with locking mechanism
- Mechanical end stop to protect the O-ring from destruction
Application
| Special feature | Free from silicone; Gold-plated contacts; Drag chain suitability |
|---|---|
| Application | hygienic and wet areas in the food industry |
| Free from silicone | yes |
Electrical data
| Operating voltage [V] | < 50 AC / < 60 DC |
|---|---|
| Protection class | III |
| Max. current load total [A] | 3 |
Operating conditions
| Ambient temperature [°C] | -25...80 | |
|---|---|---|
| Note on ambient temperature |
| |
| Ambient temperature (moving) [°C] | 5...80 | |
| Note on ambient temperature (moving) |
| |
| Protection | IP 65; IP 67; IP 68; IP 69K |
Mechanical data
| Weight [g] | 73 | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Moulded-body material | PVC | ||||||||
| Material nut | stainless steel (1.4404 / 316L) | ||||||||
| Sealing material | EPDM | ||||||||
| Number of ports splitter box | 2 | ||||||||
| Drag chain suitability | yes | ||||||||
| Drag chain suitability |
|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable: 0.6 m, PVC, orange, Ø 4.9 mm; 3 x 0.34 mm² (42 x Ø 0.1 mm ) |
Electrical connection - plug
| Connector: 1 x M12, straight; coding: A; Moulded body: PVC, orange; Locking: stainless steel (1.4404 / 316L); Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EVT340-00 — 05.11.2020 —
