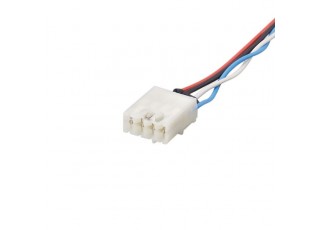

EC9209 Connection cable with contact housing BasicCable/N2//C1.1

EC9209 Connection cable with contact housing BasicCable/N2//C1.1

  • Brand:IFM ELECTRONIC
  • Product Code: EC9209
  • Availability: Out Of Stock
  • For the connection of controllers
  • Suited for use in mobile machines
  • Can be coded and cut to size
  • Wide operating temperature range
Application
Design for BasicController, CAN2 N2, CR04xx
Mechanical data
Weight [g] 58.8
Remarks
Remarks
CAN bus terminating resistor (120 ohms) is integrated in the standard timer contact housing
Pack quantity 1 pcs.
Electrical connection
Connection Cable: 1.5 m; 2 x 0.50 mm² + 2 x 0.75 mm²
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EC9209-00 — 22.05.2015 —
