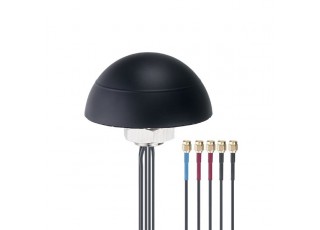

EC3170 Combined antenna for navigation and radio Mobile/GNSS/WIFI Antenna

Brand:IFM ELECTRONIC
Product Code: EC3170
Availability: Out Of Stock

Get information

Interfaces

GNSS

Frequency band

1575,42...1610 MHz

Connector type

SMA

Note on interfaces

Operating voltage: 3...5 V DC

Current consumption: < 15 mA

Impedance: 50 Ohm

Polarisation: RHCP

LNA: 28 ± 2 dB

LNA V.S.W.R.: < 2,0

noise density: < 1,5 dB

Mobile networks

Transmission standard

LTE Cat-4

Frequency band

LTE: 698...960 MHz; 1710...2690 MHz

Connector type

SMA

Note on interfaces

Impedance: 50 Ohm

Polarisation: linear vertical

WLAN

Frequency band

2400...2483,5 MHz; 4900...5825 MHz

Connector type

SMA

Note on interfaces

Impedance: 50 Ohm

Polarisation: linear

noise density: 2 dBi

Operating conditions

Ambient temperature [°C]	-40...85
Protection	IP 67

Mechanical data

Weight [g]	597.5
Type of mounting	screw mounting
Dimensions [mm]	Ø 110 / L = 55
Materials	ABS

Remarks

Pack quantity	1 pcs.

Electrical connection - GPS

	Cable: 3 m
	Connector: 1 x SMA

Electrical connection - Mobile networks

	Cable: 3 m
	Connector: 2 x SMA

Electrical connection - WLAN

	Cable: 3 m
	Connector: 2 x SMA

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EC3170-00 — 03.03.2022 —
