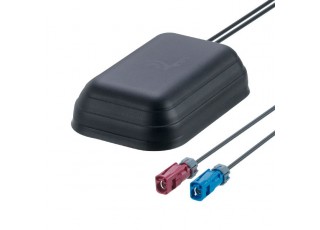

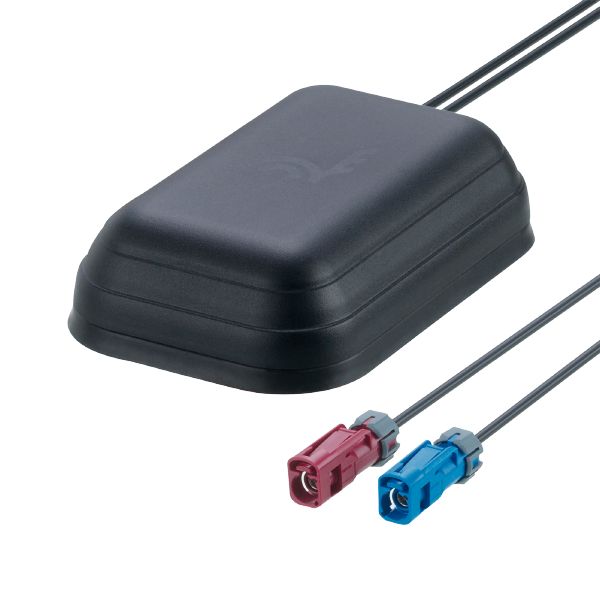

EC3158 Combined antenna for navigation and radio LTE/GNSS/FAKRA-Antenna
- Brand:IFM ELECTRONIC
- Product Code: EC3158
- Availability: Out Of Stock
Electrical data
| Current consumption [mA] | < 24 |
|---|
Interfaces
| Frequency band | GPS: 1563...1587 MHz (L1); Galileo: 1559...1591 MHz (E1); Beidou: 1559...1591 MHz (B1C); GLONASS: 1593...1610 MHz (G1) | ||||||
|---|---|---|---|---|---|---|---|
| Note on interfaces |
|
| Frequency band | 698 ...960 MHz; 710...2170 MHz; 2300...2690 MHz | |||
|---|---|---|---|---|
| Note on interfaces |
|
Operating conditions
| Ambient temperature [°C] | -40...85 |
|---|---|
| Protection | IP 6K6 |
Mechanical data
| Weight [g] | 366 |
|---|---|
| Type of mounting | Gewinde |
| Dimensions [mm] | 80 x 124 x 31 |
| Materials | PC black |
| Tightening torque [Nm] | < 5 |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - GPS
| Cable: 3 m | |
| Connector: 1 x FAKRA |
Electrical connection - GSM
| Cable: 3 m | |
| Connector: 1 x FAKRA |
