EC0464 Standard timer contact housing with contacts BasicHousing + Contact

EC0464 Standard timer contact housing with contacts BasicHousing + Contact

  • Brand:IFM ELECTRONIC
  • Product Code: EC0464
  • Availability: Out Of Stock
  • For the connection of controllers and dialogue units
  • For utilising all connections of a controller
  • Reliable signal transmission for CAN devices
  • Can be coded and cut to size
Application
Design for BasicController Relay, utilising all connections to a BasicController Relay, CR0431
Mechanical data
Weight [g] 70.8
Accessories

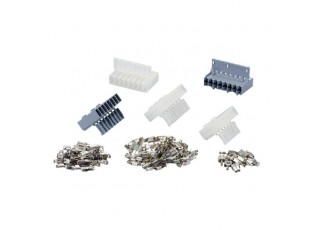

Items supplied
Standard timer contact housing: 2, 8-pole, grey (A/B = inputs)
Standard timer contact housing: 2, 8-pole, natural (D/E = outputs)
Standard timer contact housing: 1, 6-pole, natural (V_EXT/N1/N2 = supply external units and CAN1/2)
standard timer contacts: 10 x 0,2...0,5 mm², tin-plated
standard timer contacts: 40 x 0,5...1,0 mm², tin-plated
standard power timer contacts: 20 x 1,25...2,5 mm², tin-plated
Remarks
Pack quantity 1 pcs.
Electrical connection
terminals:
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EC0464-00 — 24.09.2015 —
