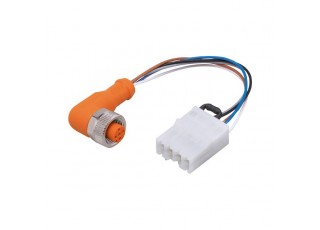

EC0452 Prewired jumper with contact housing BasicCable/Display inboard

EC0452 Prewired jumper with contact housing BasicCable/Display inboard

  • Brand:IFM ELECTRONIC
  • Product Code: EC0452
  • Availability: Out Of Stock
  • For the connection of controllers and dialogue units
  • Reliable signal transmission for CAN devices
  • With integrated CAN bus terminating resistors in contact housing and connector
  • Large operating temperature range for use in mobile machines
  • Wired for voltage supply and signal transmission
Application
Design wired, for BasicController and BasicDisplay, 1 x CR04xx, 1 x CR045x
Application power supply; CAN bus
Operating conditions
Ambient temperature [°C] -40...85
Mechanical data
Weight [g] 23.2
Remarks
Remarks
CAN bus terminating resistors (120 ohm) are integrated into the standard timer contact housing and the M12 connector
use only sensible in conjunction with cover EC0402
Pack quantity 1 pcs.
Electrical connection
Connection Cable: 0.1 m; 5 x 0.34 mm²
Connection Connector: 1 x M12
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EC0452-01 — 30.09.2014 —
