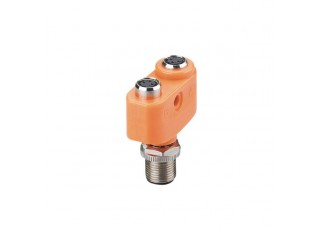

EBC112 - ecomat400-ZDO2F030MSS0000-00STGH040MSS
- Brand:IFM ELECTRONIC
- Product Code: EBC112
- Availability: Out Of Stock
- For use in applications with many inputs and outputs where space is restricted
- Visual and tactile marking of the ports
- Resistant to oils and coolants
- High protection rating for the requirements of harsh industrial environments
- Mechanical end stop to protect the O-ring from destruction
Application
| Special feature | Free from silicone; Gold-plated contacts |
|---|---|
| Free from silicone | yes |
Electrical data
| Operating voltage [V] | < 50 AC / < 60 DC; (cULus: 30 AC / 42 DC) |
|---|---|
| Protection class | III |
| Max. current load total [A] | 3 |
Operating conditions
| Ambient temperature [°C] | -25...90 | |
|---|---|---|
| Note on ambient temperature |
| |
| Protection | IP 65; IP 67; IP 68; IP 69K |
Tests / approvals
| UL approval |
|
|---|
Mechanical data
| Weight [g] | 30.2 |
|---|---|
| Materials | housing: PA orange; Sealing: FKM |
| Material nut | brass, nickel-plated |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connector: 1 x M12; coding: A; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm |
